Horn Connector

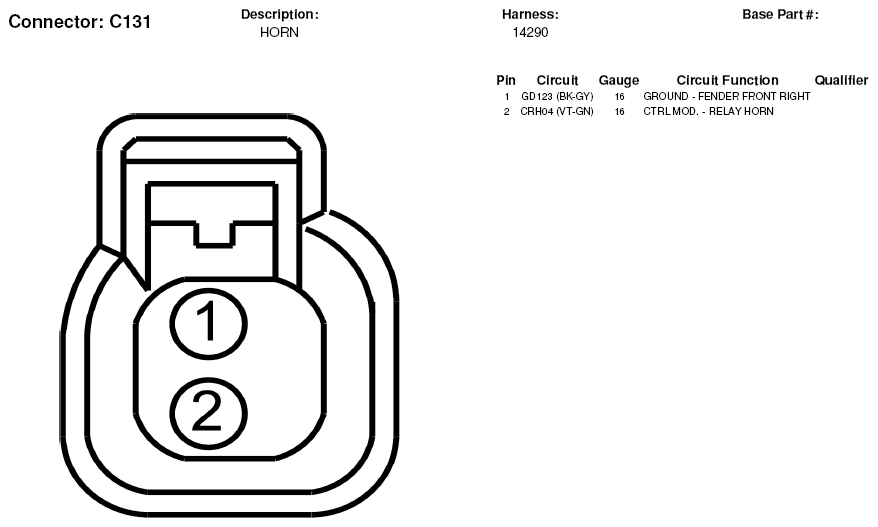

Fig 1: Horn Connector End View (C131)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
