Passenger Air Bag Module Connectors
Fig 1: Passenger Air Bag Module Connector End View (C256A)
Courtesy of FORD MOTOR CO.

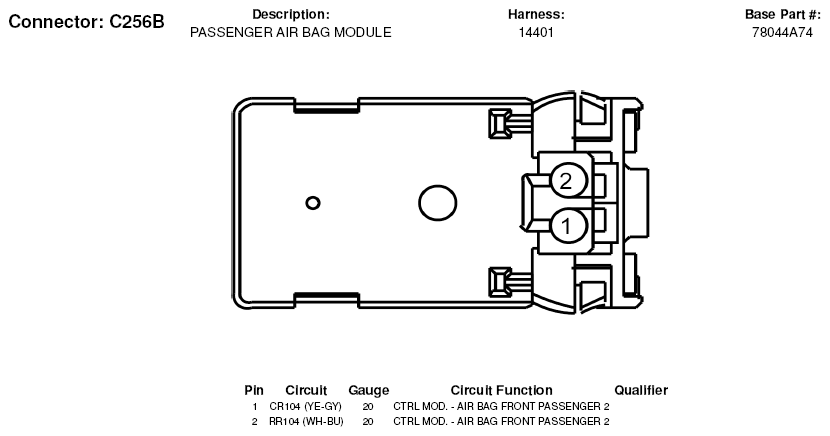

Fig 2: Passenger Air Bag Module Connector End View (C256B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
