Driver Seat Module Connector

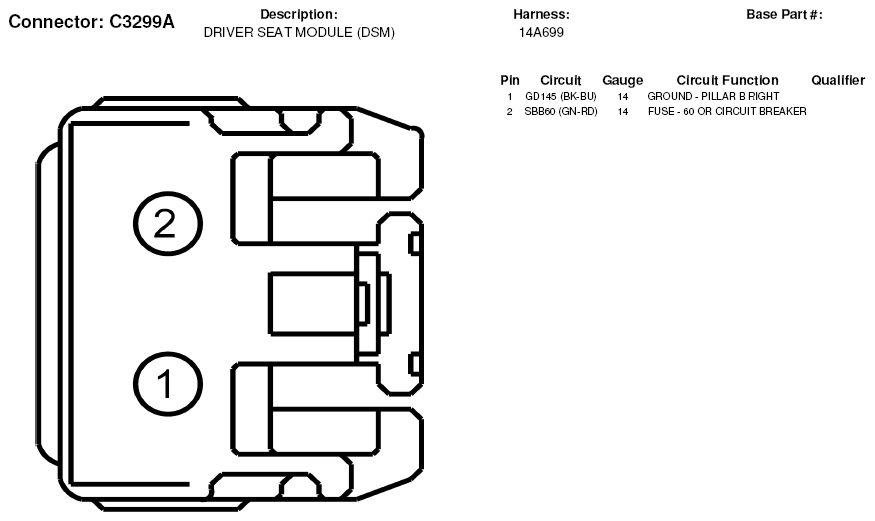

Fig 1: Driver Seat Module Connector End View (C3299A)
G05182782Courtesy of FORD MOTOR CO.

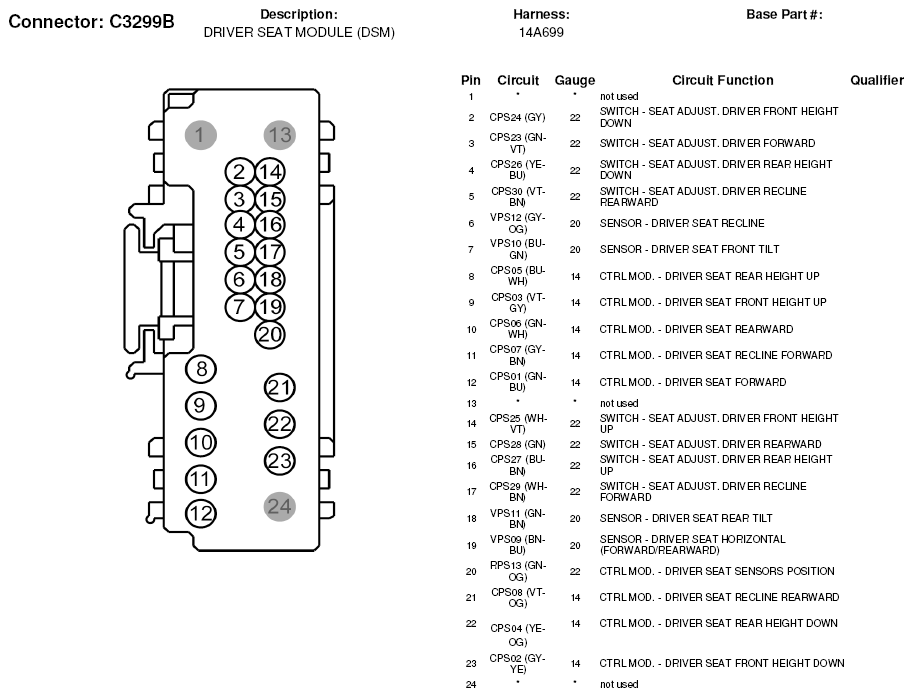

Fig 2: Driver Seat Module Connector End View (C3299B)
G05182783Courtesy of FORD MOTOR CO.

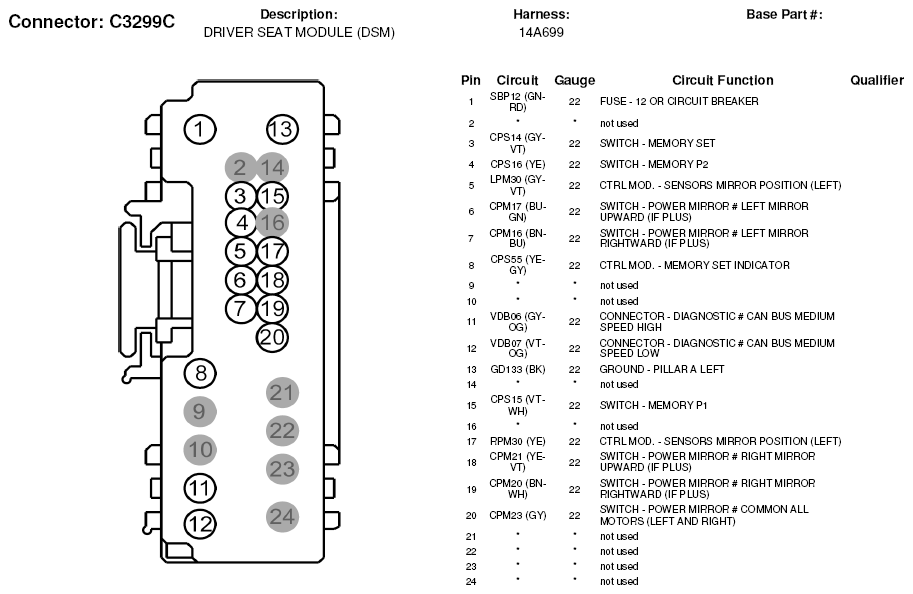

Fig 3: Driver Seat Module Connector End View (C3299C)
G05182784Courtesy of FORD MOTOR CO.

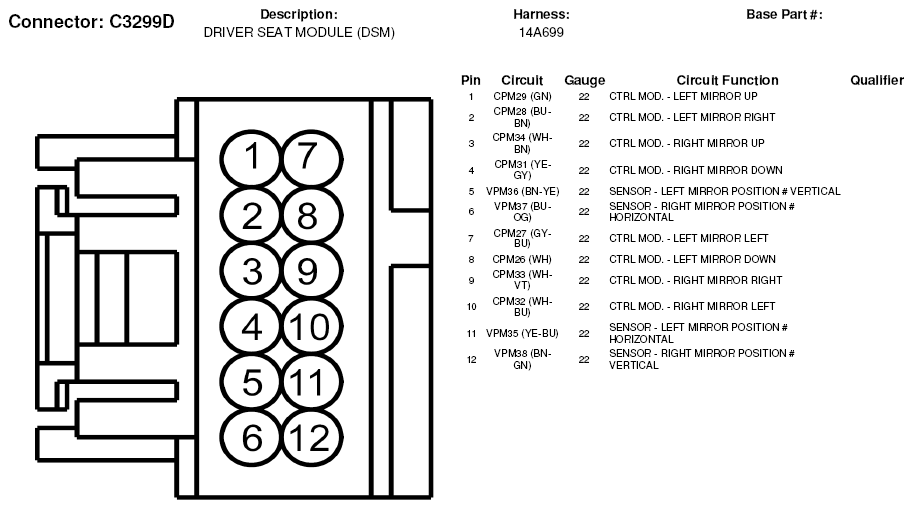

Fig 4: Driver Seat Module Connector End View (C3299D)
G05182785Courtesy of FORD MOTOR CO.
