Passenger Air Bag Module - Edge: Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

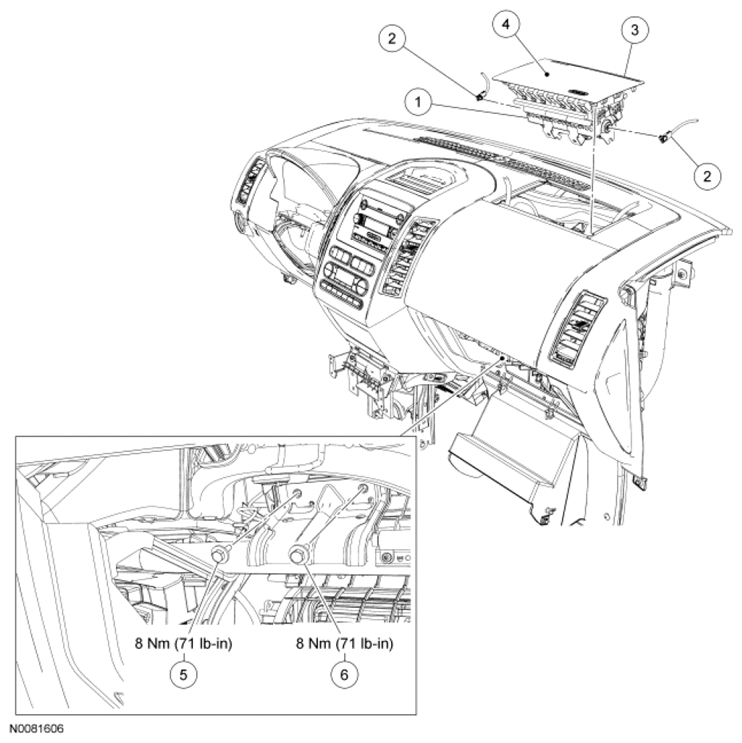

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module assembly |
| 2 | - | Passenger air bag module electrical connectors (part of 14401) |
| 3 | - | Passenger air bag cover clip (part of 04338) |
| 4 | 04338 | Passenger air bag cover |
| 5 | W505422 | Passenger air bag module inboard bolt |
| 6 | W505422 | Passenger air bag module outboard bolt |
