Brake Pedal Position Switch Connector

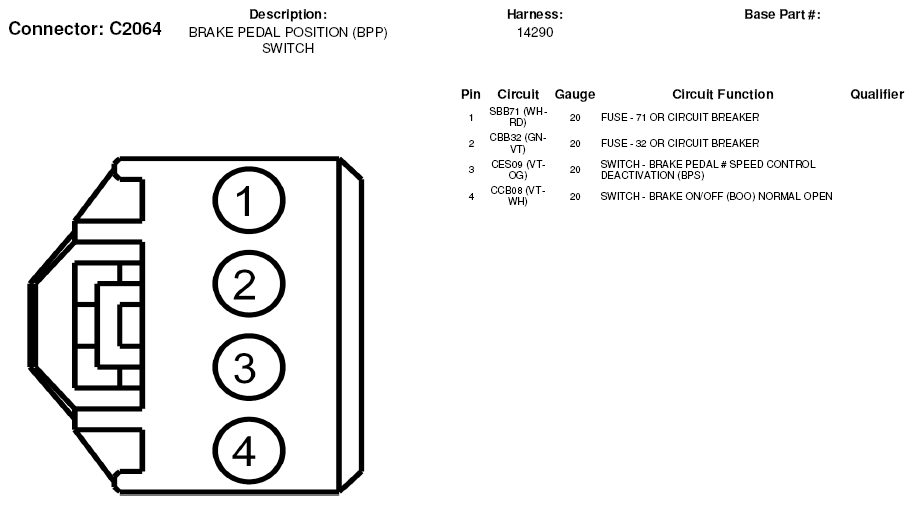

Fig 1: Brake Pedal Position Switch Connector End View (C2064)
G05182727Courtesy of FORD MOTOR CO.
