Timing Component Alignment Marks: Locations

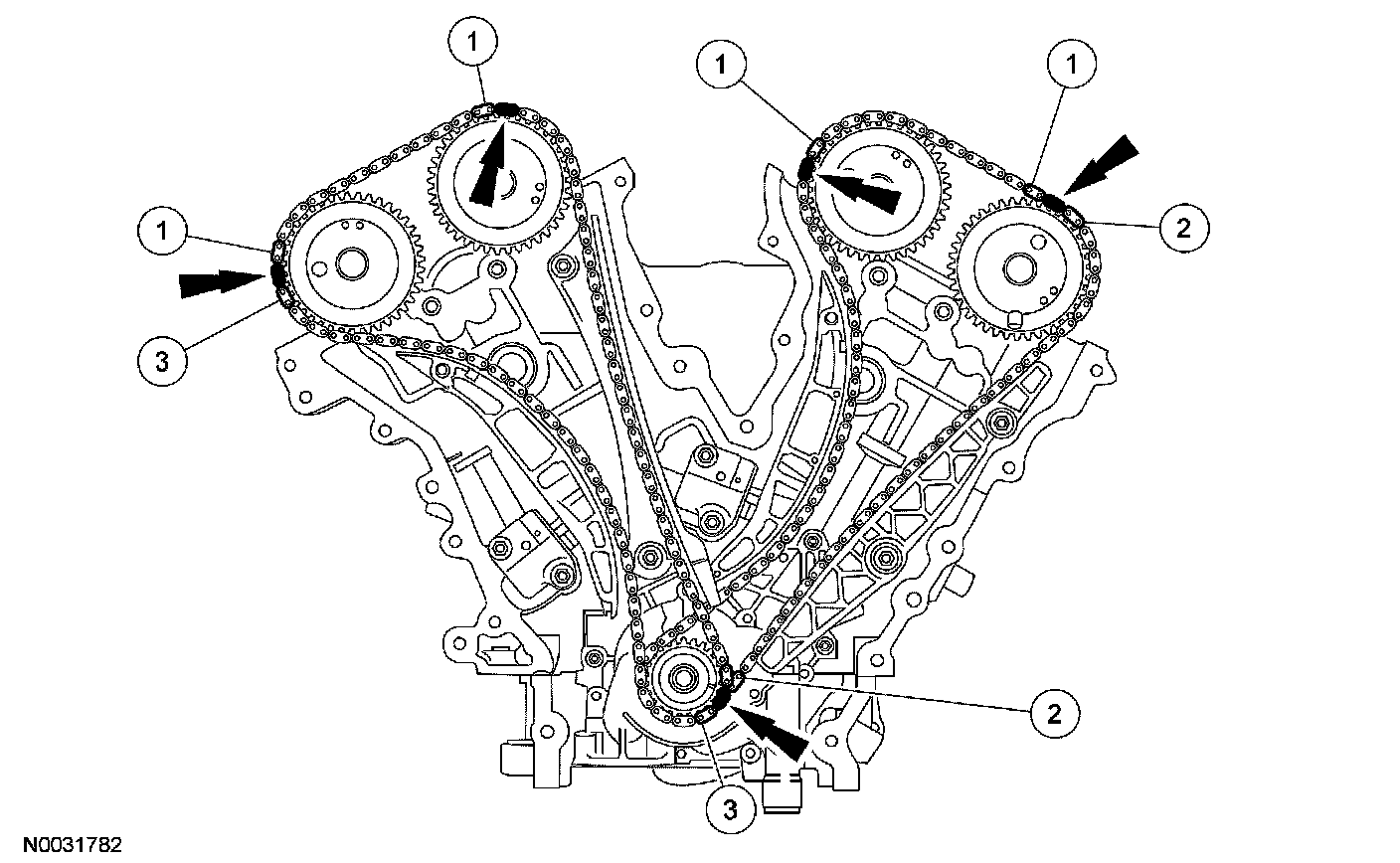

Timing Alignment Marks





There should be 12 chain links between the camshaft timing marks.

There should be 27 chain links between the camshaft and the crankshaft timing marks.

There should be 30 chain links between the camshaft and the crankshaft timing marks.
