Powertrain Control Module Connectors

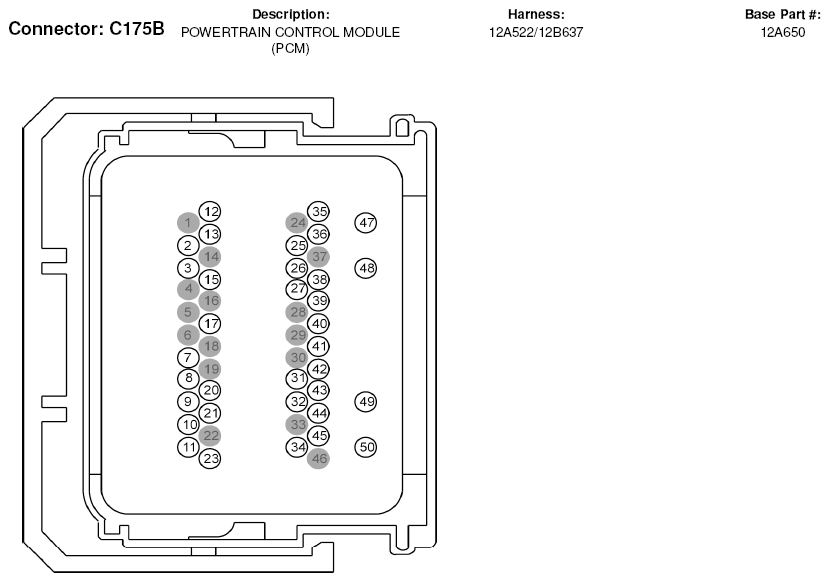

Fig 1: Powertrain Control Module Connector End View (C175B) (1 Of 2)
G05178356Courtesy of FORD MOTOR CO.

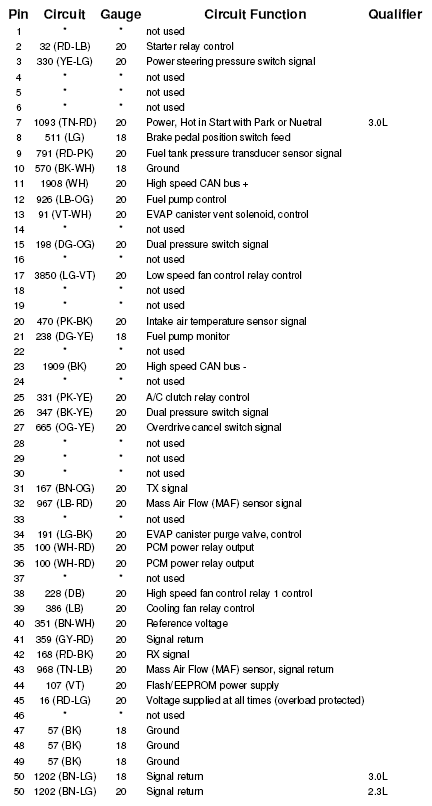

Fig 2: Powertrain Control Module Connector End View (C175B) (2 Of 2)
G05178357Courtesy of FORD MOTOR CO.

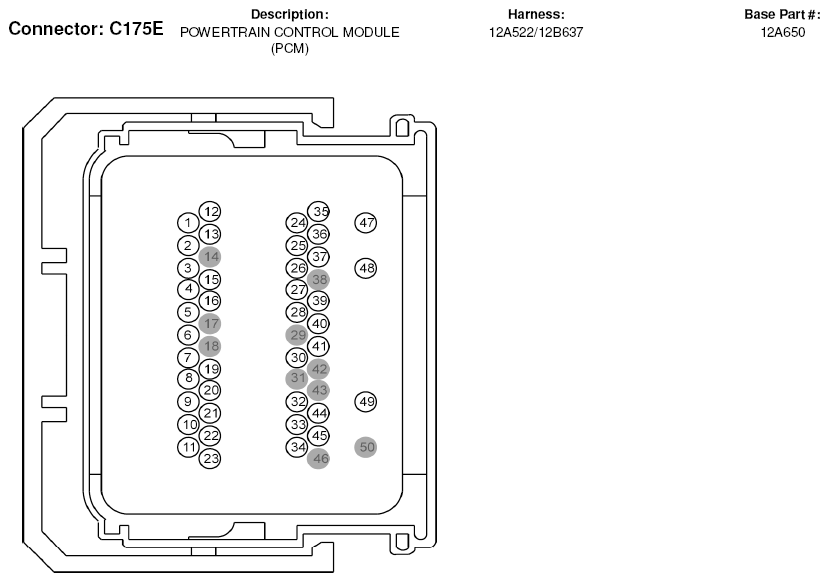

Fig 3: Powertrain Control Module Connector End View (C175E) (1 Of 2)
G05178358Courtesy of FORD MOTOR CO.

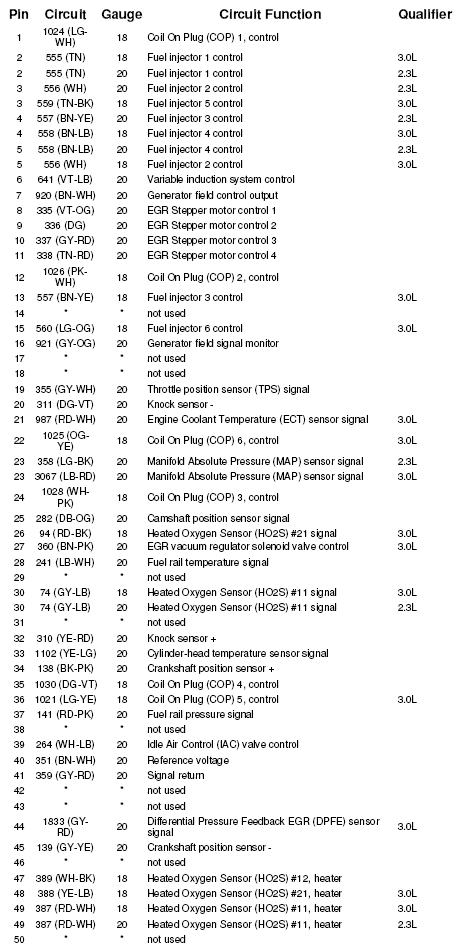

Fig 4: Powertrain Control Module Connector End View (C175E) (2 Of 2)
G05178359Courtesy of FORD MOTOR CO.

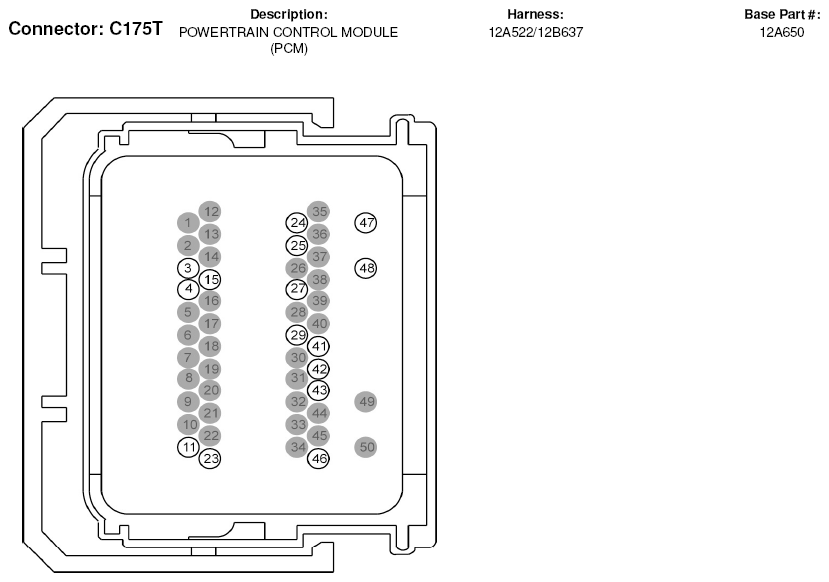

Fig 5: Powertrain Control Module Connector End View (C175T) (1 Of 2)
G05178360Courtesy of FORD MOTOR CO.

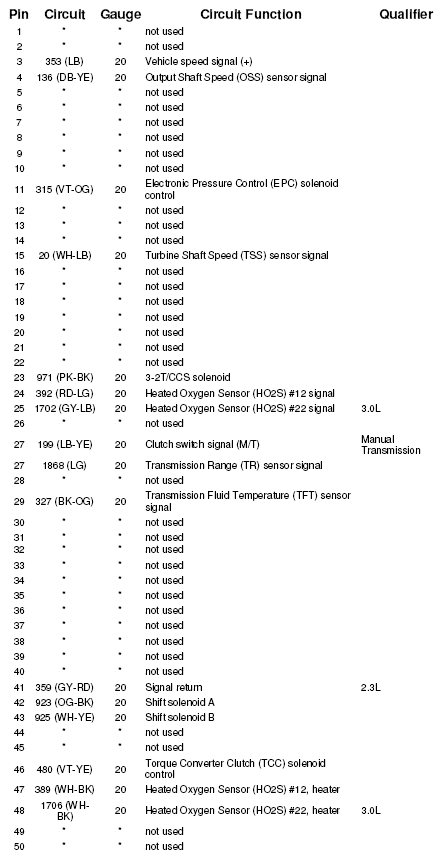

Fig 6: Powertrain Control Module Connector End View (C175T) (2 Of 2)
G05178361Courtesy of FORD MOTOR CO.
