Auxiliary Step / Running Board Module: Service and Repair

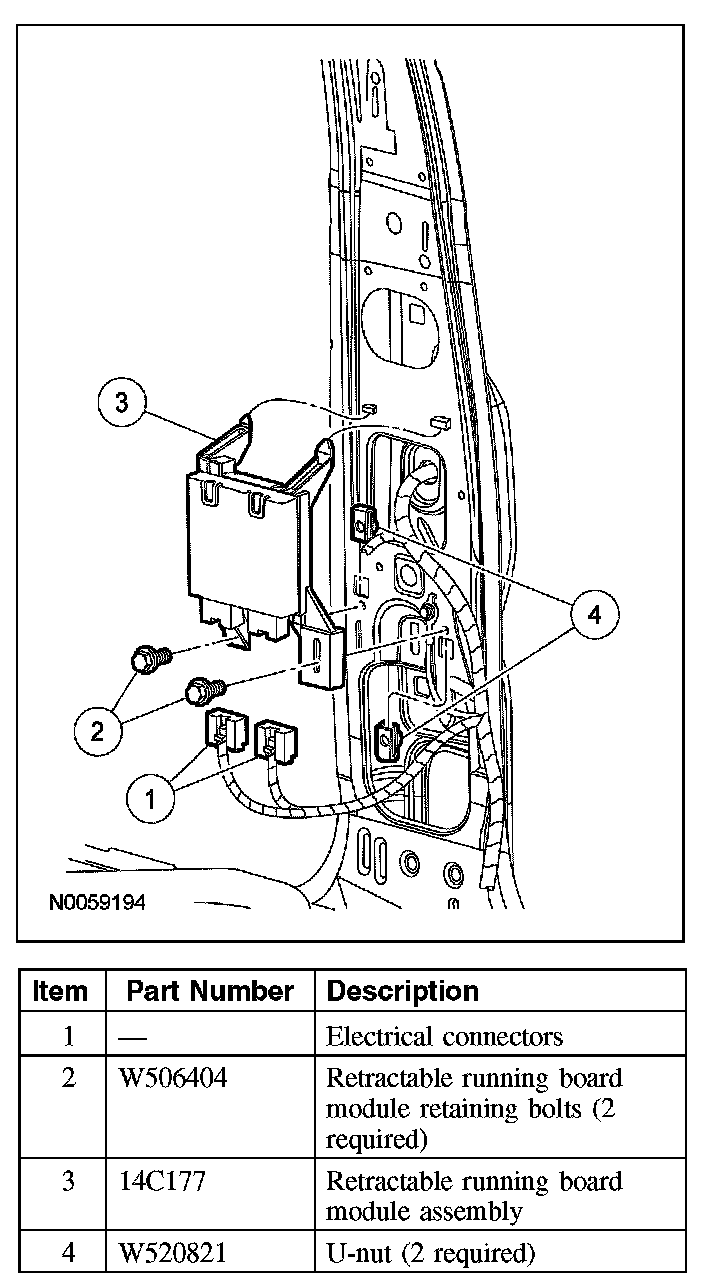

RETRACTABLE RUNNING BOARD MODULE







Removal and Installation
1. Remove the LH B-pillar trim panel.
2. Disconnect the retractable running board module electrical connectors.
3. Remove the 2 bolts and the retractable running board module assembly.
4. To install, reverse the removal procedure.
