Seat Control Switch - Third Row: Notes

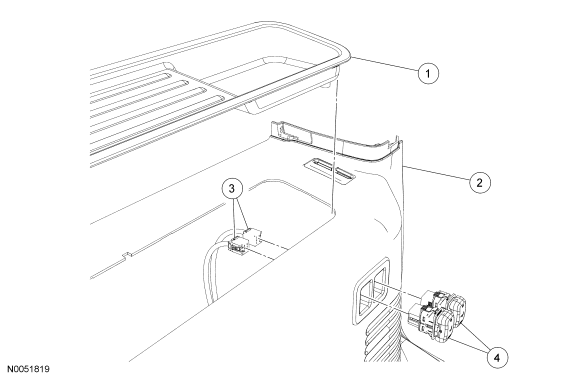

Fig 1: Exploded View Of Third Row Seat Control Switch
GF0021505Courtesy of FORD MOTOR CO.
Item Part Number Description
1 13530 Tray, RH rear quarter trim panel
2 31012 RH rear quarter trim panel
3 - Electrical connectors (part of wire harness 13A409)
4 14C715 LH and RH third row seat control switches
