Brake Shift Interlock Connector

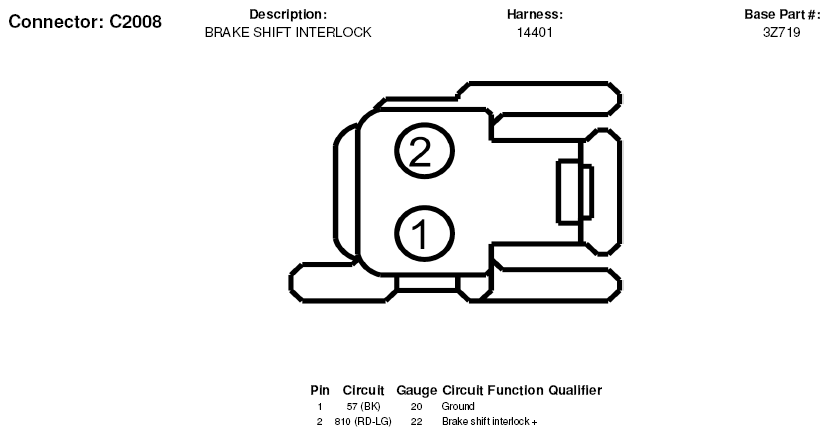

Fig 1: Brake Shift Interlock Connector End View (C2008)
G05179301Courtesy of FORD MOTOR CO.

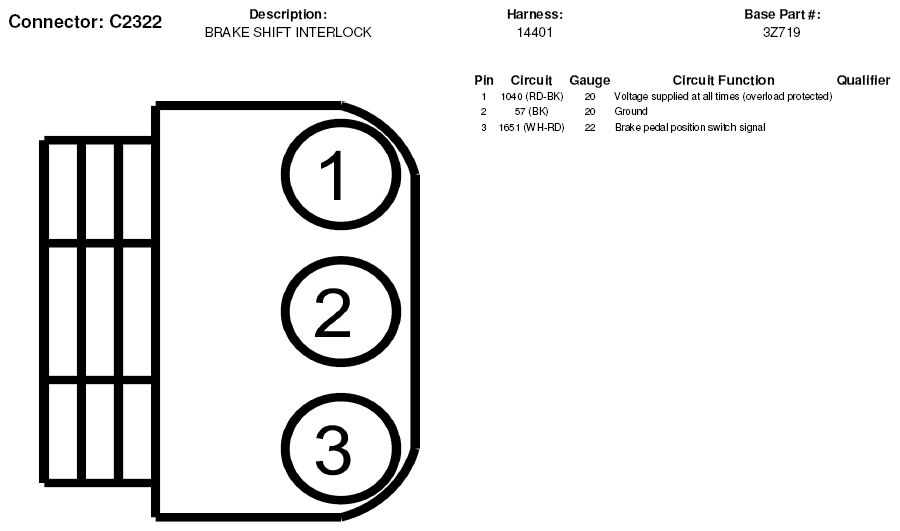

Fig 2: Brake Shift Interlock Connector End View (C2322)
G05179324Courtesy of FORD MOTOR CO.
