Overhead Console Connectors

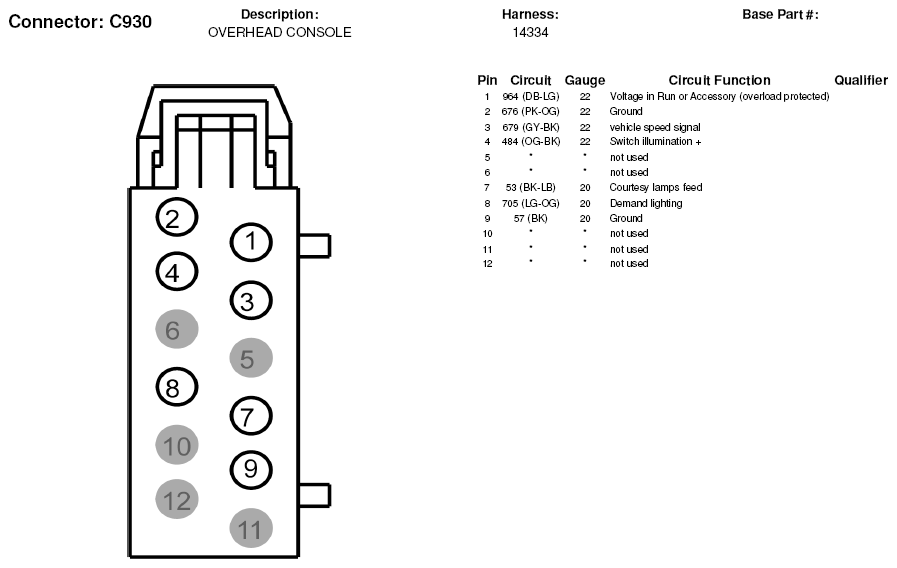

Fig 1: Overhead Console Connector End View (C930)
G05179250Courtesy of FORD MOTOR CO.

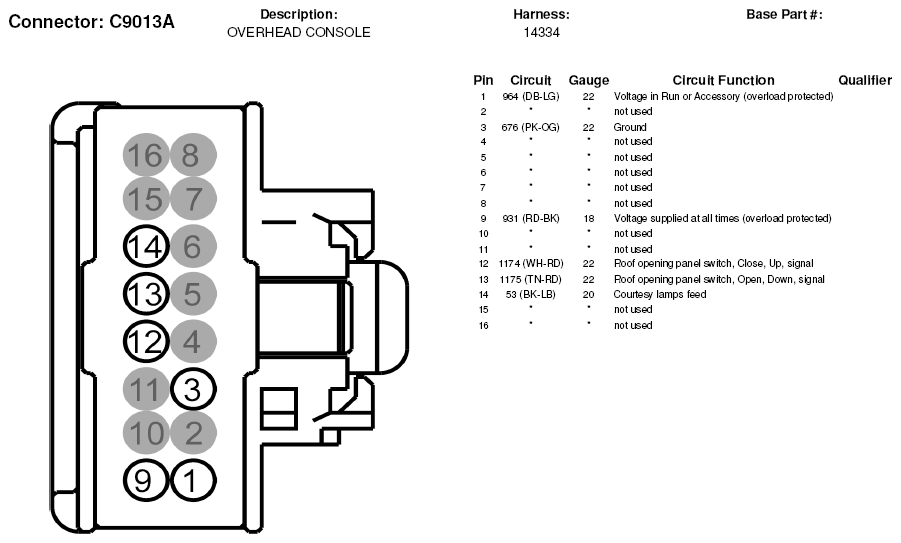

Fig 2: Overhead Console Connector End View (C9013A)
G05179372Courtesy of FORD MOTOR CO.

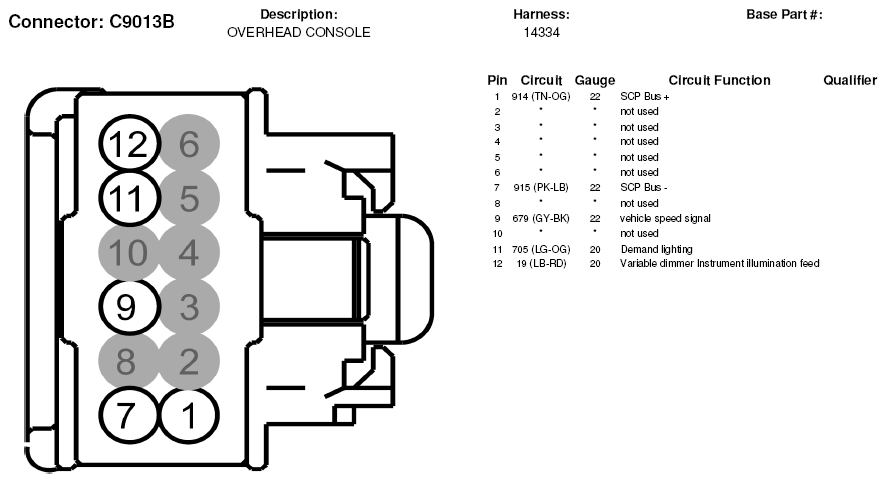

Fig 3: Overhead Console Connector End View (C9013B)
G05179373Courtesy of FORD MOTOR CO.
