Fuel Pump Module: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Wrench, Fuel Tank Sender Unit | 310-123 |
NOTE:
106L (28 gal) fuel tank shown, 127L (33.5 gal) fuel tank similar.

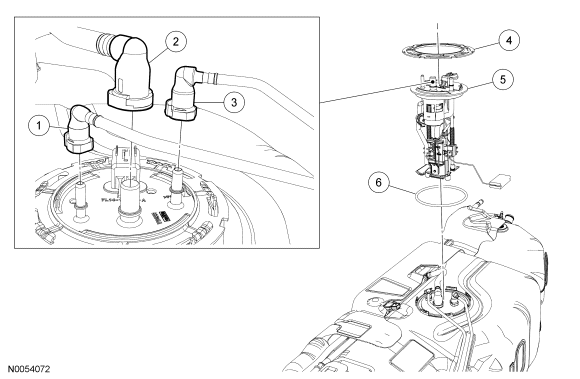

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Return fuel tube-to-fuel pump module quick connect coupling (part of 9J337) |
| 2 | - | Fuel tank pressure sensor and vapor tube assembly-to-fuel pump module quick connect coupling (part of 9G271) |
| 3 | - | Supply fuel tube-to-fuel pump module quick connect coupling (part of 9J337) |
| 4 | 9C385 | Fuel pump module locking ring |
| 5 | 9H307 | Fuel pump module |
| 6 | 9276 | Fuel pump module O-ring seal |
