HVAC Module EATC Connectors

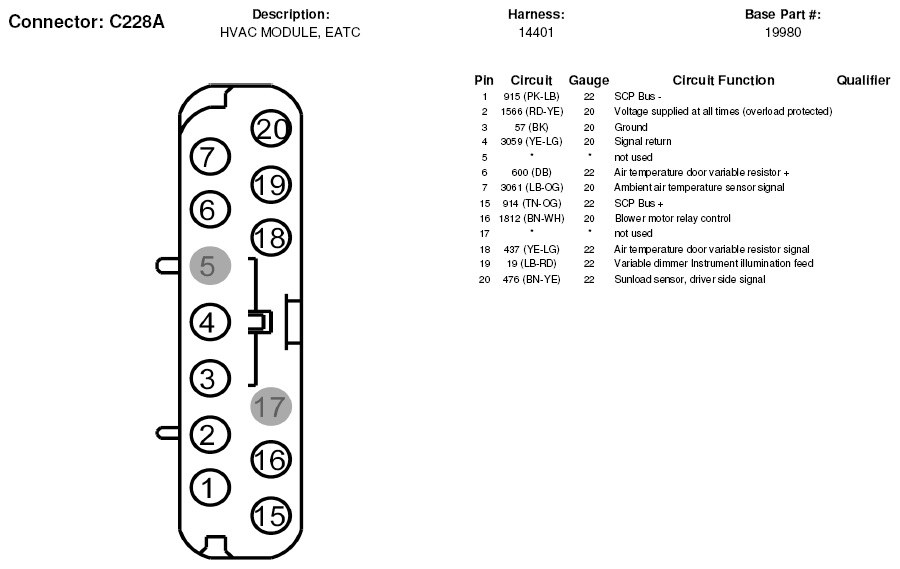

Fig 1: HVAC Module EATC Connector End View (C228A)
G05179115Courtesy of FORD MOTOR CO.
Fig 2: HVAC Module EATC Connector End View (C228B)
G05179116Courtesy of FORD MOTOR CO.
