Interior Lamp/ Map Lamp Assembly Connector

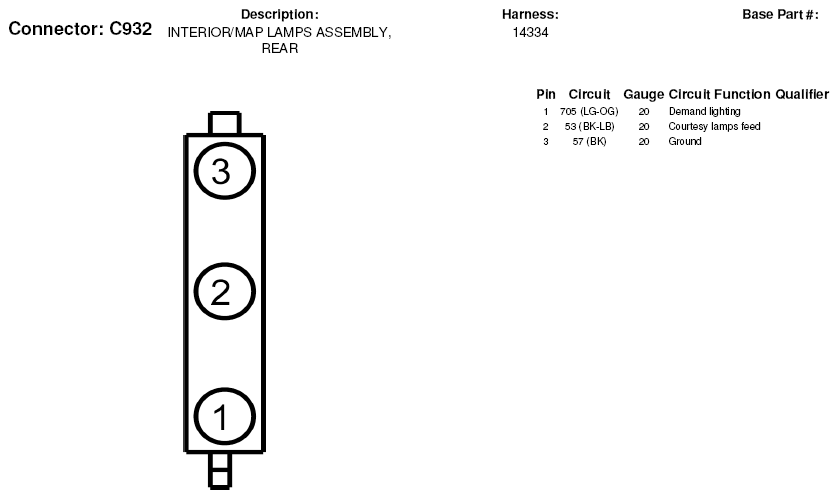

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C932)
G05179251Courtesy of FORD MOTOR CO.
