Power Window Switch Connector

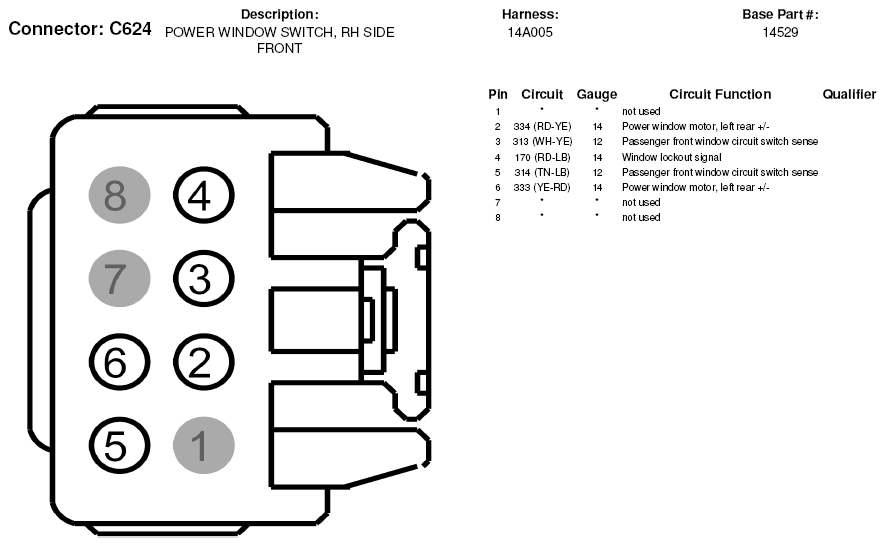

Fig 1: Power Window Switch Connector End View (C624)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
