Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger similar.

NOTE: 40 percent seat backrest shown, 60 percent seat backrest similar.

NOTE: Backrest with power recline shown, backrest with manual recline similar.

Fig 1: Exploded View Of Front Seat Backrest - 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611A08	Head restraint
2	64416/64810	Backrest trim cover/foam pad
3	61019	Backrest frame assembly
4	610A16	Head restraint guide (2 required)
5	611D10	Side air bag module
6	N620480	Side air bag module nuts (if equipped)
7	14K155	Wiring harness, side air bag
8	14C712	Backrest thermo-electric device (TED)
9	N803946	Scrivet (if equipped)
10	60108	Lumbar screws (4 required)
11	65500	Lumbar assembly
12	14A699	Wiring harness (if equipped)
13	60108	Backrest-to-seat track bolts (4 required)

NOTE: Driver memory seat shown, driver and passenger power seat similar.

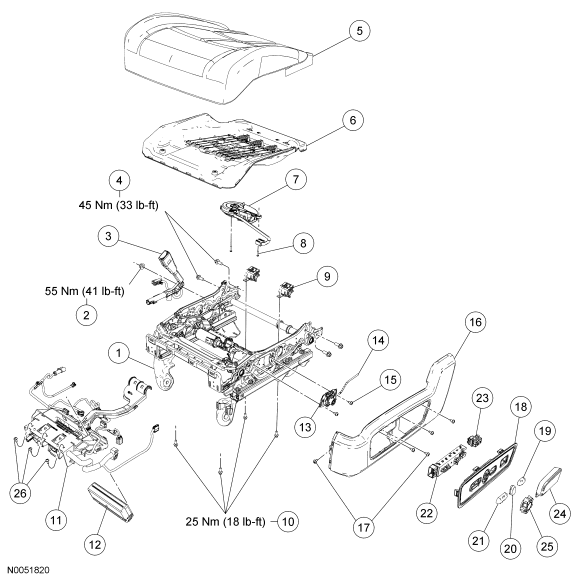

Fig 2: Exploded View Of Front Seat Cushion - 40 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61711	Seat track assembly
2	W520114	Safety belt buckle pretensioner nut
3	61203	Safety belt buckle pretensioner
4	60108	Backrest-to-seat track bolts (4 required)
5	62900/632A22	Cushion trim cover/foam pad
6	63100	Seat cushion frame
7	18D508	Cushion thermo-electric device (TED) (if equipped)
8	-	TED screws (2 required) (if equipped)
9	-	Cushion frame rear clip and strap (2 sets required) (part of 63100)
10	60108	Cushion frame-to-seat track bolts (4 required)
11	14A699	Wiring harness and bracket assembly
12	14C708	Driver seat module (if equipped)
13	610C01	Manual lumbar actuator (if equipped)
14	-	Manual lumbar cable (if equipped) (part of 65501)
15	60108	Manual lumbar actuator screw (2 required) (if equipped)
16	62163	Cushion side shield
17	-	Cushion side shield screws (5 required)
18	14A707	Side shield cover
19	14711	Knob, power lumbar switch (if equipped)
20	14711	Knob, power recliner switch (if equipped)
21	14711	Knob, seat control switch
22	14A701	Seat control switch
23	14776	Memory SET switch (if equipped)
24	61737	Recliner handle (if equipped)
25	62622	Manual lumbar knob (if equipped)
26	60108	Wiring harness bracket screws (3 required)

NOTE: Sixty percent manual seat track shown, 40 percent manual seat track similar.

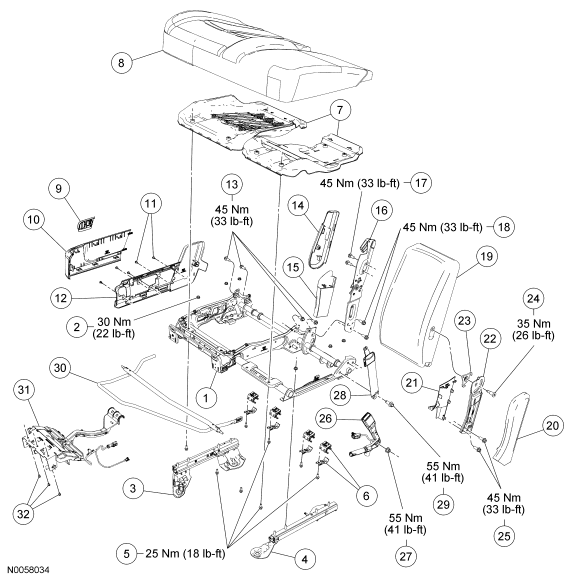

Fig 3: Exploded View Of Front Seat Cushion - 60 Percent With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	61705	Seat track
2	-	Seat track rail-to-seat track nut (6 required)
3	61704	Outboard seat track rail
4	61705	Inboard seat track rail
5	60108	Cushion frame-to-seat track bolts (8 required)
6	617D44	Cushion frame rear clip and strap (4 sets required)
7	63100	Cushion frames
8	62900/632A22	Cushion trim cover/foam pad
9	61737	Manual recliner lever handle
10	14A706	Side shield cover
11	60108	Cushion side shield screws (5 required)
12	62186	Cushion side shield
13	60108	Backrest-to-seat track bolts (4 required)
14	672A32	Armrest latch upper cover
15	672A32	Armrest latch lower cover
16	645A04	Armrest latch
17	-	Armrest latch-to-armrest bolt (2 required)
18	-	Armrest latch-to-seat track bolts (2 required)
19	65478	Armrest
20	-	Armrest bracket outer cover
21	672A28	Armrest bracket inner cover
22	63076	Armrest bracket
23	654A76	Armrest spacer
24	W707769	Armrest pivot bolt and washer
25	N804266	Armrest bracket-to-seat track bolts (2 required)
26	61202	Safety belt buckle pretensioner
27	W520014	Safety belt buckle and pretensioner nut
28	611B60	Center seat safety belt
29	-	Center seat safety belt bolt (part of 611B60)
30	603A86	Seat track adjust handle
31	14A699	Wiring harness and bracket assembly
32	-	Wiring harness and bracket screws (3 required)
