Climate Control Assembly Connectors

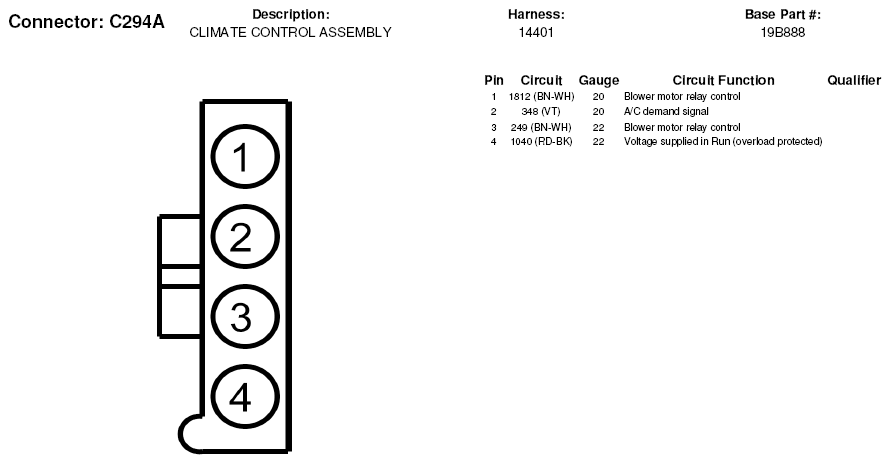

Fig 1: Climate Control Assembly Connector End View (C294A)
G05179143Courtesy of FORD MOTOR CO.

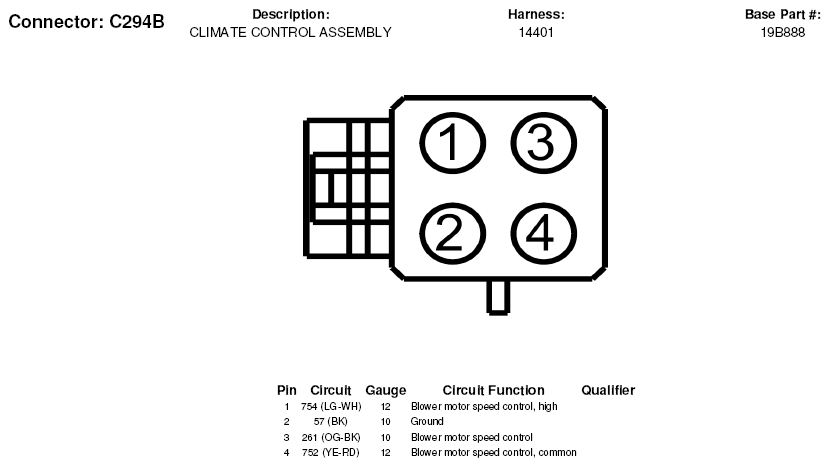

Fig 2: Climate Control Assembly Connector End View (C294B)
G05179144Courtesy of FORD MOTOR CO.

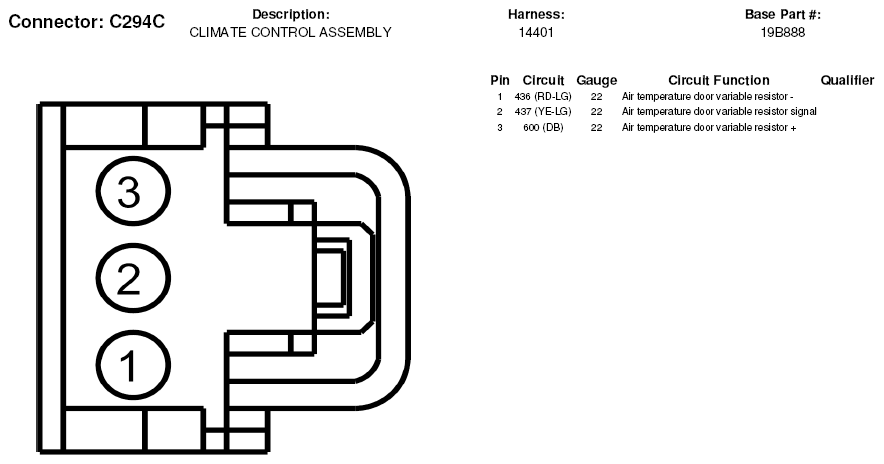

Fig 3: Climate Control Assembly Connector End View (C294C)
G05179145Courtesy of FORD MOTOR CO.

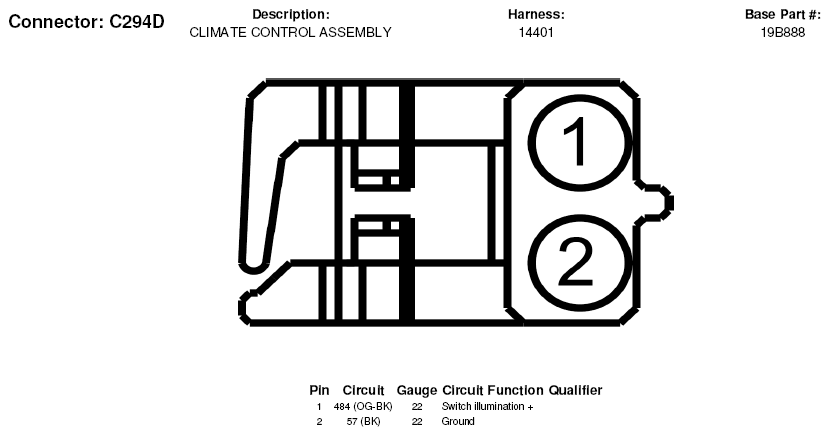

Fig 4: Climate Control Assembly Connector End View (C294D)
G05179146Courtesy of FORD MOTOR CO.
