Driver Door Module Connectors

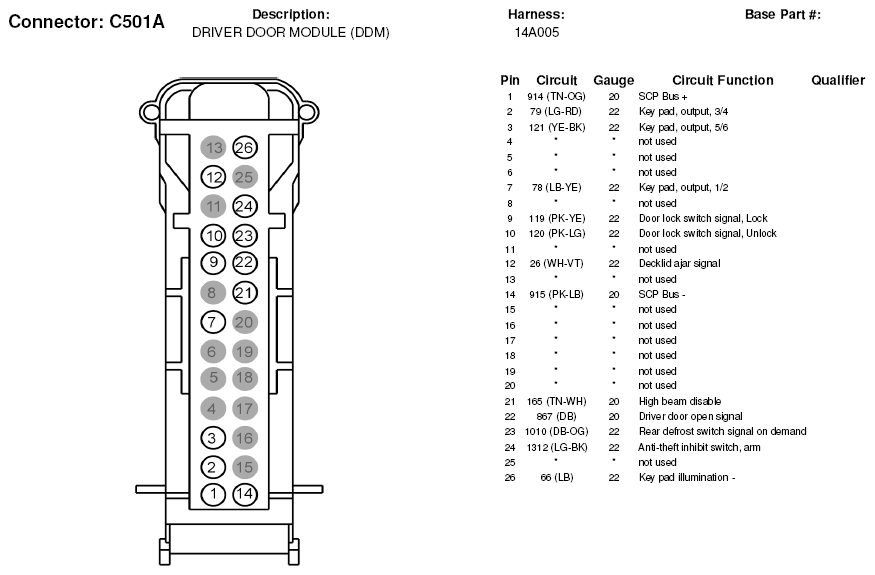

Fig 1: Driver Door Module Connector End View (C501A)
G05179202Courtesy of FORD MOTOR CO.

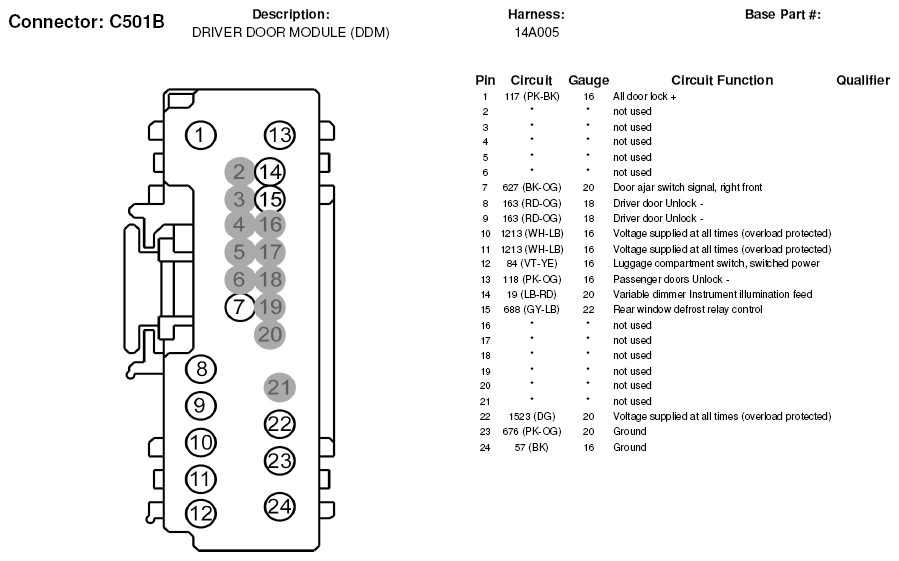

Fig 2: Driver Door Module Connector End View (C501B)
G05179203Courtesy of FORD MOTOR CO.

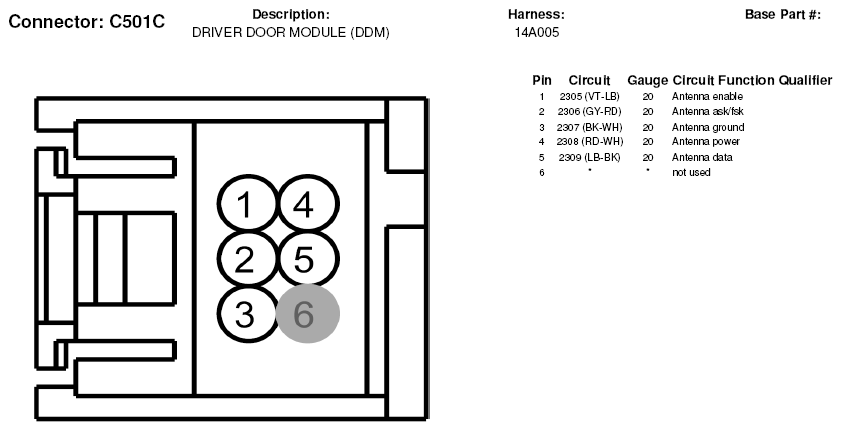

Fig 3: Driver Door Module Connector End View (C501C)
G05179204Courtesy of FORD MOTOR CO.
