Right Front Strobe Assembly Connector

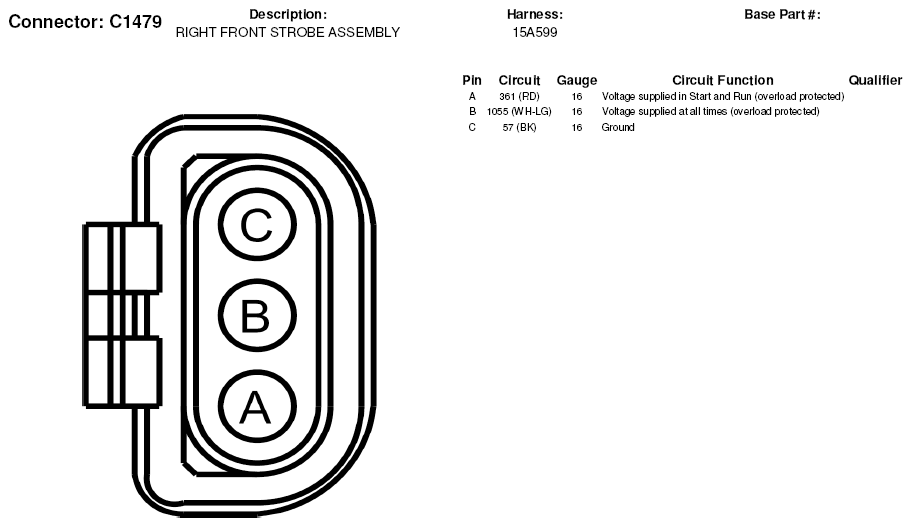

Fig 1: Right Front Strobe Assembly Connector End View (C1479)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
