Wig/Wag Module Connector

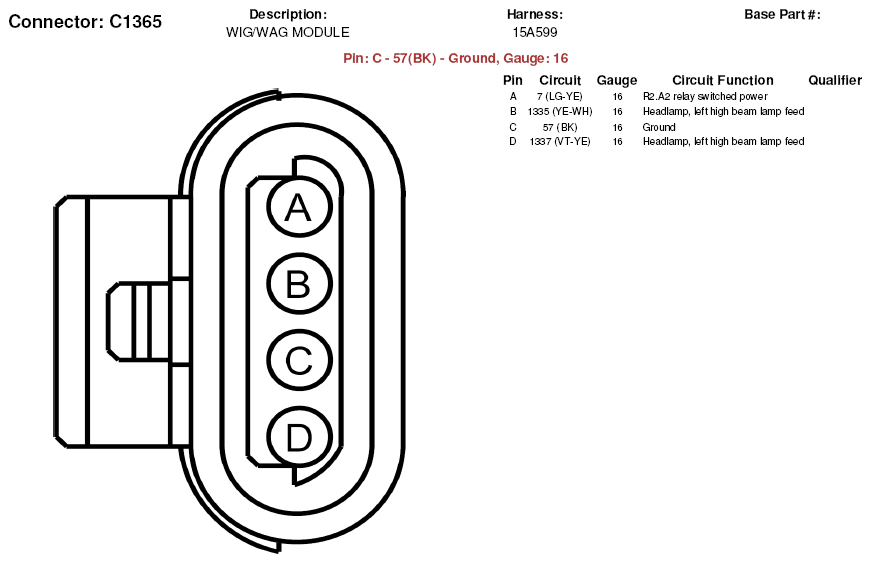

Fig 1: Wig/Wag Module Connector End View (C1365)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
