Window Adjust Switch Connectors

Fig 1: Window Adjust Switch Connector End View (C701)
G05179233Courtesy of FORD MOTOR CO.

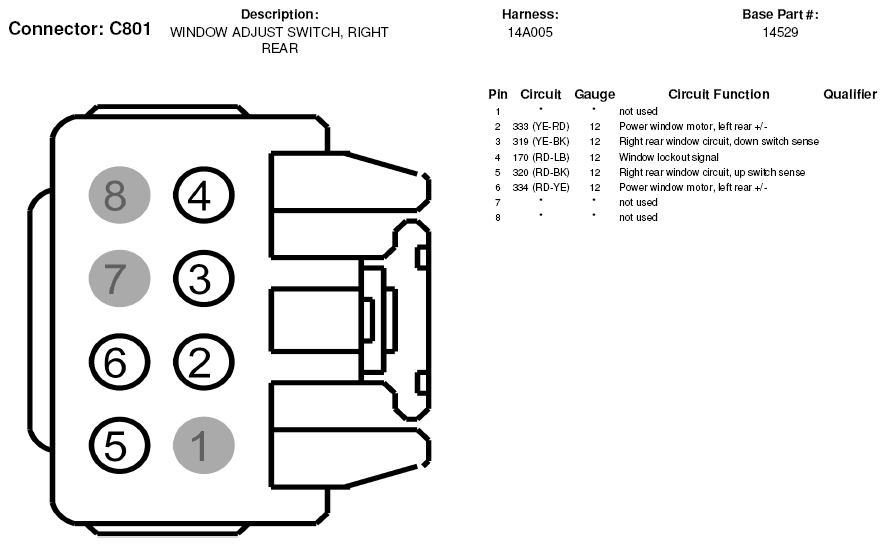

Fig 2: Window Adjust Switch Connector End View (C801)
G05179239Courtesy of FORD MOTOR CO.
