Engine Emission Control
CAUTION:
Do not remove any part of the engine emission control system. Operating the engine without the engine emission control system will reduce fuel economy and engine ventilation. This will weaken engine performance and shorten engine life.
The engine emission control system consists of the:
- positive crankcase ventilation (PCV) system.

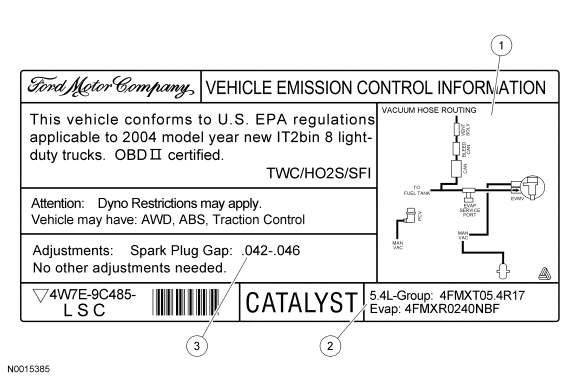

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Engine vacuum hose routing (typical) |
| 2 | - | Engine type |
| 3 | - | Spark plug gap specifications |
The Vehicle Emission Control Information (VECI) decal shows:
- components of the emission control system.
- the correct vacuum hose routing.
- the color stripe of the vacuum hoses.
Refer to IDENTIFICATION CODES article.
The heated PCV system uses intake manifold vacuum to ventilate the crankcase and return the fumes to the intake manifold for combustion.
The PCV valve:
- controls the amount of ventilating air and blow-by gases going to the intake manifold.
- is an integral part of the LH valve cover.
- is not serviceable.
The PCV heater element:
- heats the ventilating air and blow-by gases going to the intake manifold.
