Crankshaft Position Sensor Connector

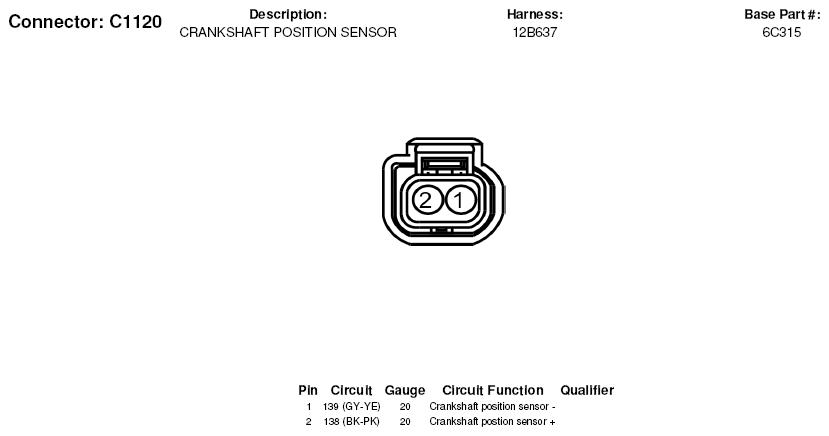

Fig 1: Crankshaft Position Sensor Connector End View (C1120)
G05179273Courtesy of FORD MOTOR CO.
