Power Window Motor Connectors

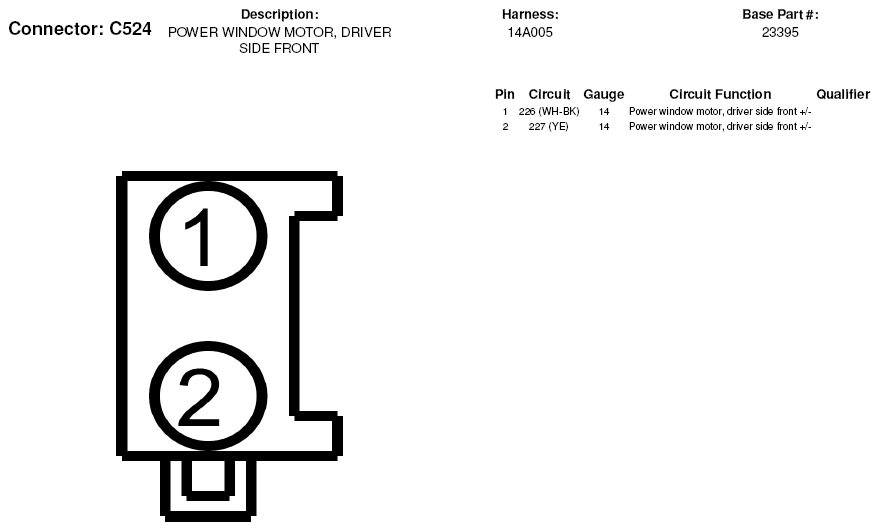

Fig 1: Power Window Motor Connector End View (C524)
G05179212Courtesy of FORD MOTOR CO.

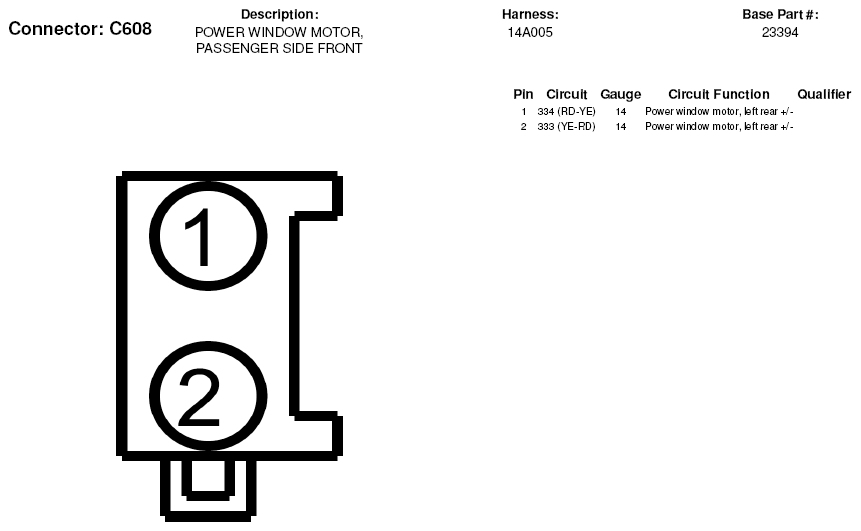

Fig 2: Power Window Motor Connector End View (C608)
G05179225Courtesy of FORD MOTOR CO.

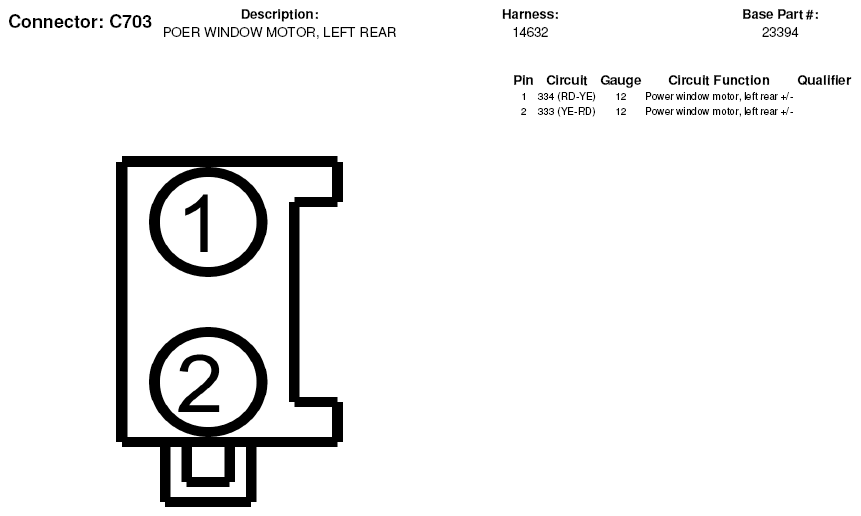

Fig 3: Power Window Motor Connector End View (C703)
G05179234Courtesy of FORD MOTOR CO.

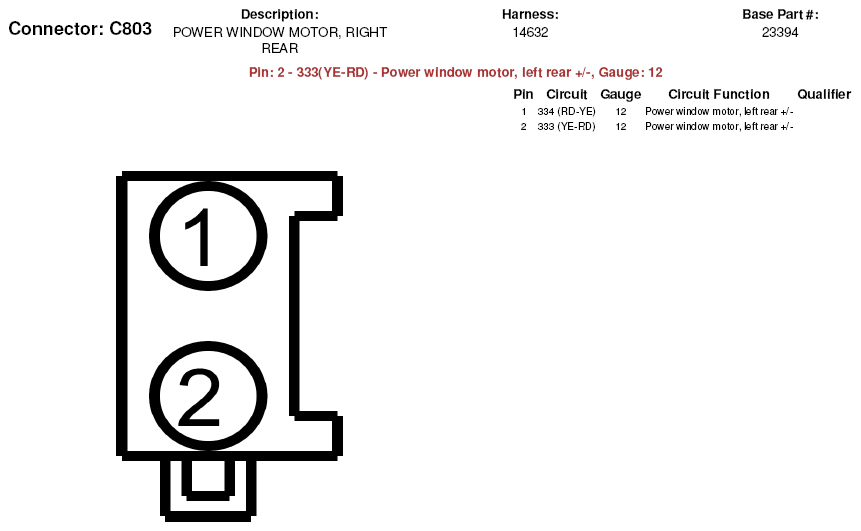

Fig 4: Power Window Motor Connector End View (C803)
G05179240Courtesy of FORD MOTOR CO.
