Driver Seat Module Connector

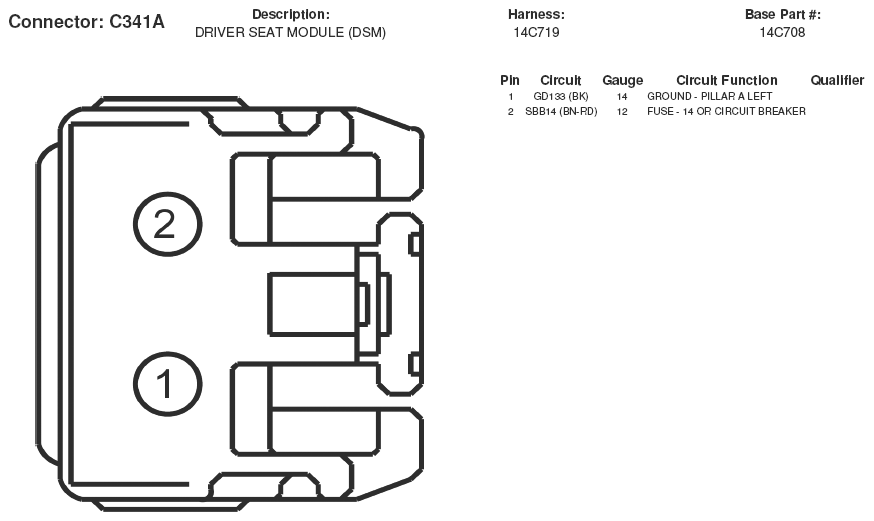

Fig 1: Driver Seat Module Connector End View (C341A)
G05166755Courtesy of FORD MOTOR CO.

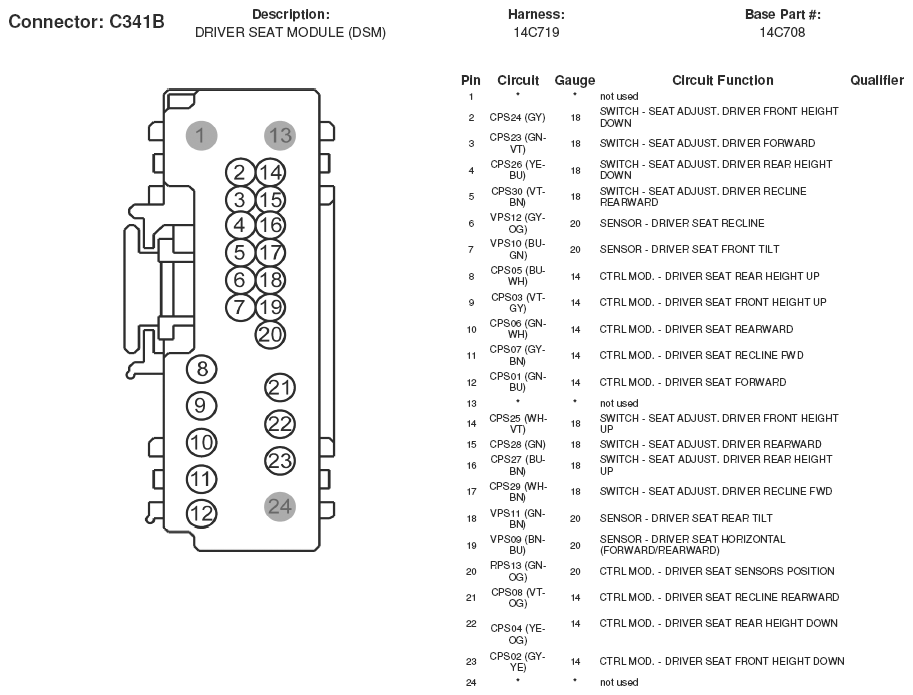

Fig 2: Driver Seat Module Connector End View (C341B)
G05166756Courtesy of FORD MOTOR CO.

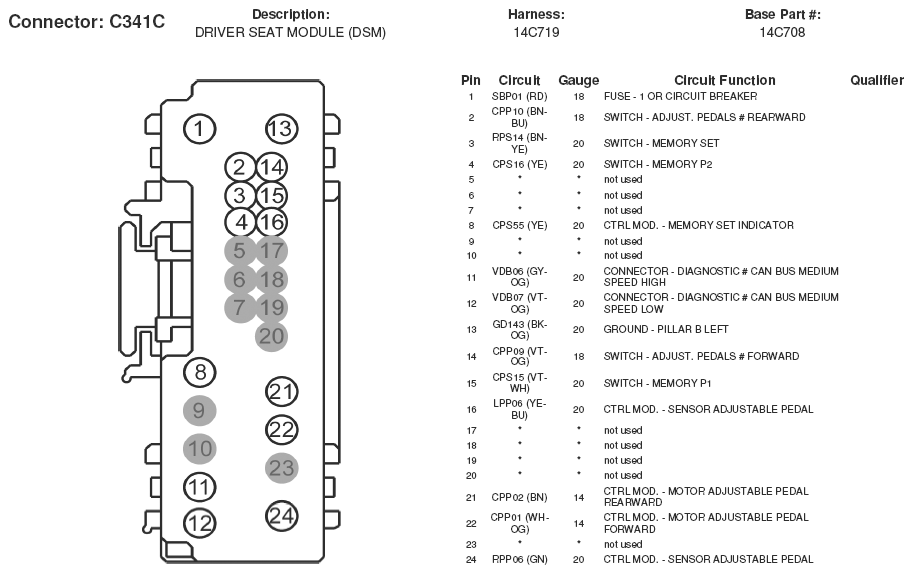

Fig 3: Driver Seat Module Connector End View (C341C)
G05166757Courtesy of FORD MOTOR CO.
