Homelink Module Connector

Fig 1: Homelink Module Connector End View (C928)
G05166856Courtesy of FORD MOTOR CO.

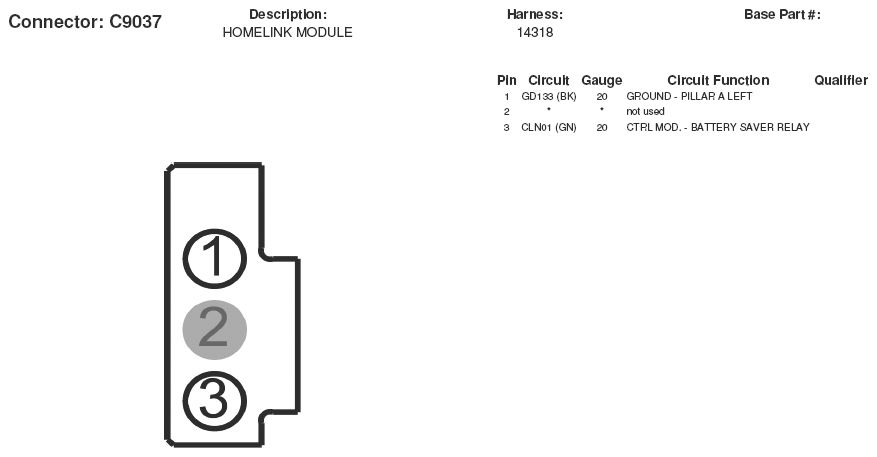

Fig 2: Homelink Module Connector End View (C9037)
G05166980Courtesy of FORD MOTOR CO.
