Engine Ignition Components - Exploded View

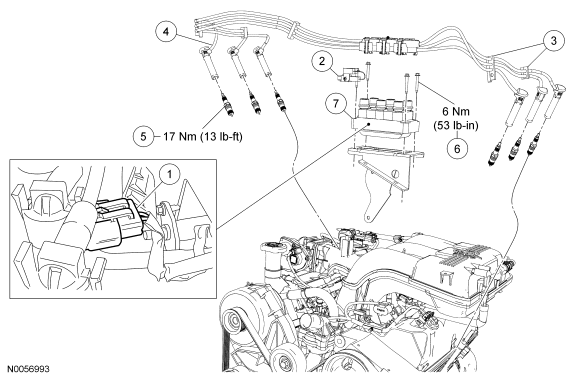

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications
GF0027068Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Ignition coil electrical connector
2 14489 Radio noise suppressor electrical connector
3 12297 Spark plug wire retainers
4 12286 Spark plug wire (6 required)
5 12405 Spark plug (6 required)
6 W706216-S Ignition coil bolts (4 required)
7 12029 Ignition coil
  1. For additional information, refer to the appropriate procedures.
