Hydraulic Control Unit (HCU): Notes

Material

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 or PM-1-C (US); CPM-1 or CPM-1-C (Canada)	ESA-M6C25-A or WSS-M6C62-A

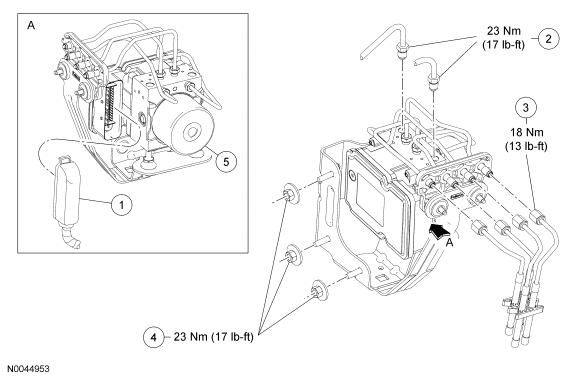

Fig 1: Exploded View Of Hydraulic Control Unit (HCU) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14398	Anti-lock brake system (ABS) module electrical connector
2	-	Brake tube-to-hydraulic control unit (HCU) fittings (M12-1) (part of 2C296) (2 required)
3	-	Brake tube-to-HCU extension tube fitting (part of 2C296) (4 required)
4	W803826	HCU bracket-to-frame nuts (3 required)
5	2C215	HCU assembly
