Auxiliary Step / Running Board Module: Service and Repair

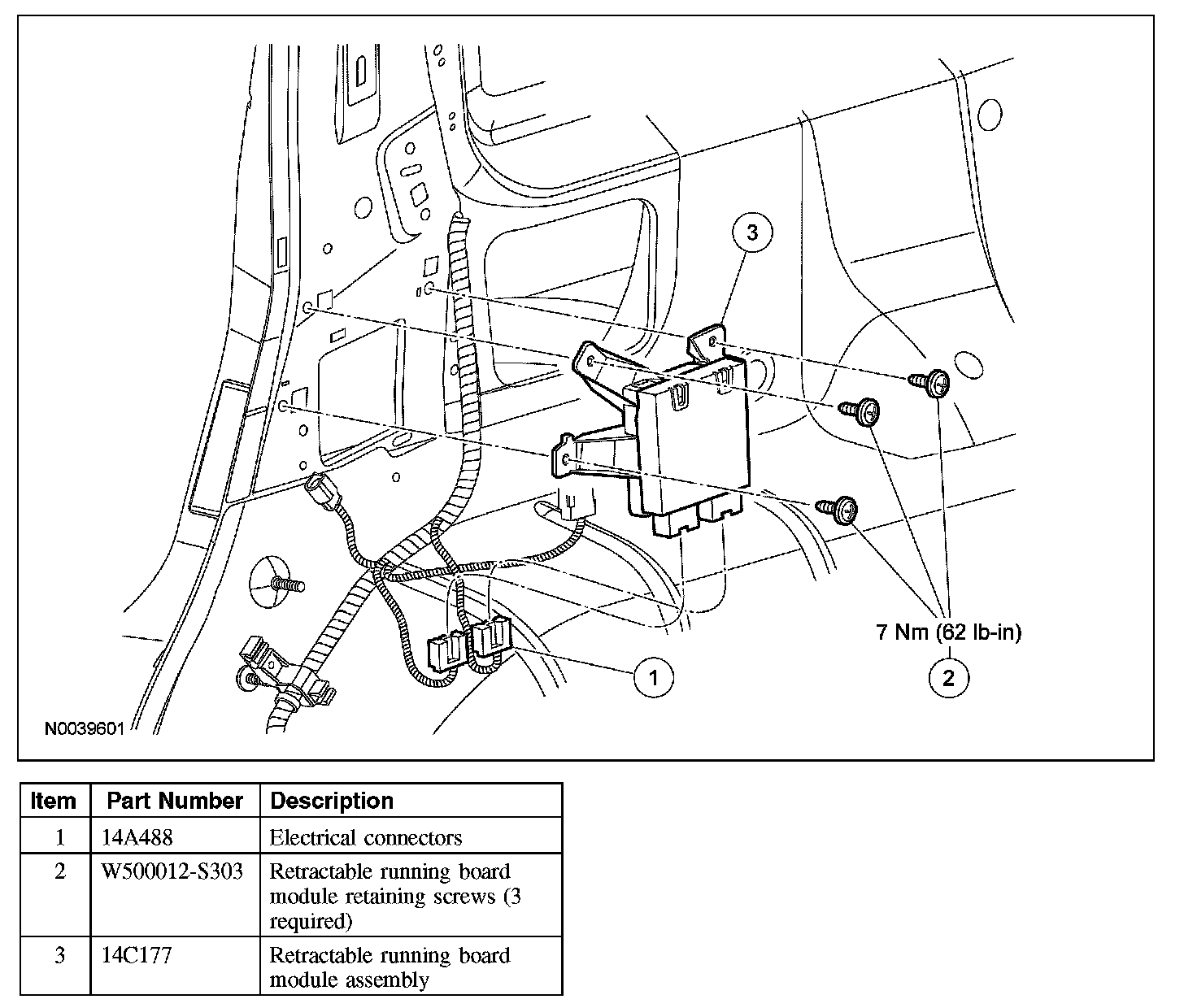

RETRACTABLE RUNNING BOARD MODULE







Removal and Installation
1. Remove the RH C-pillar trim panel.
2. Disconnect the retractable running board module electrical connectors.
3. Remove the 3 screws and the retractable running board module assembly.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
