System Specifications

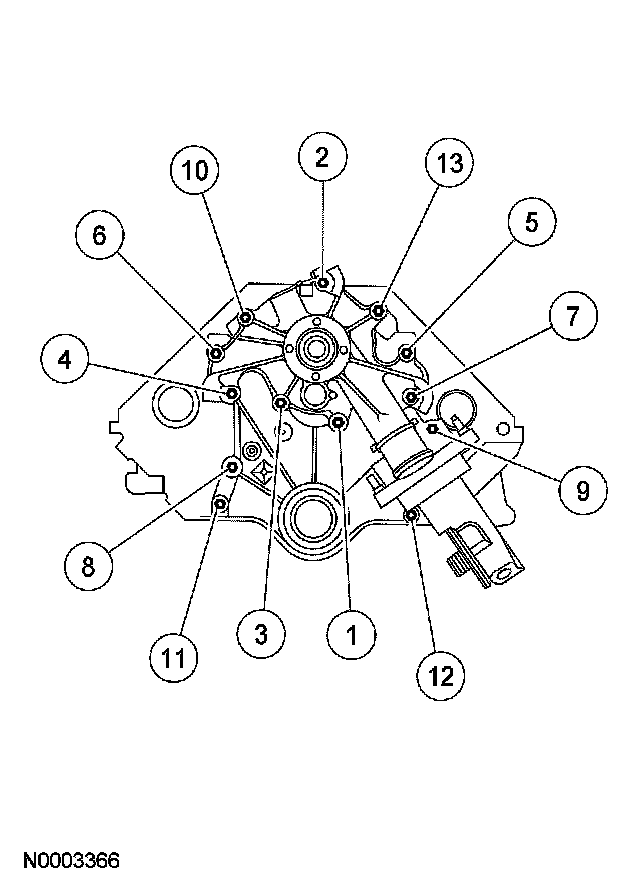

Engine front cover bolts, stud bolts and nuts





Tighten the fasteners in the sequence shown.
Capscrew No. 12 10 Nm (89 inch lbs.)
All other fasteners 28 Nm (21 ft. lbs.)

Crankshaft pulley bolt 160 Nm (118 ft. lbs.)
