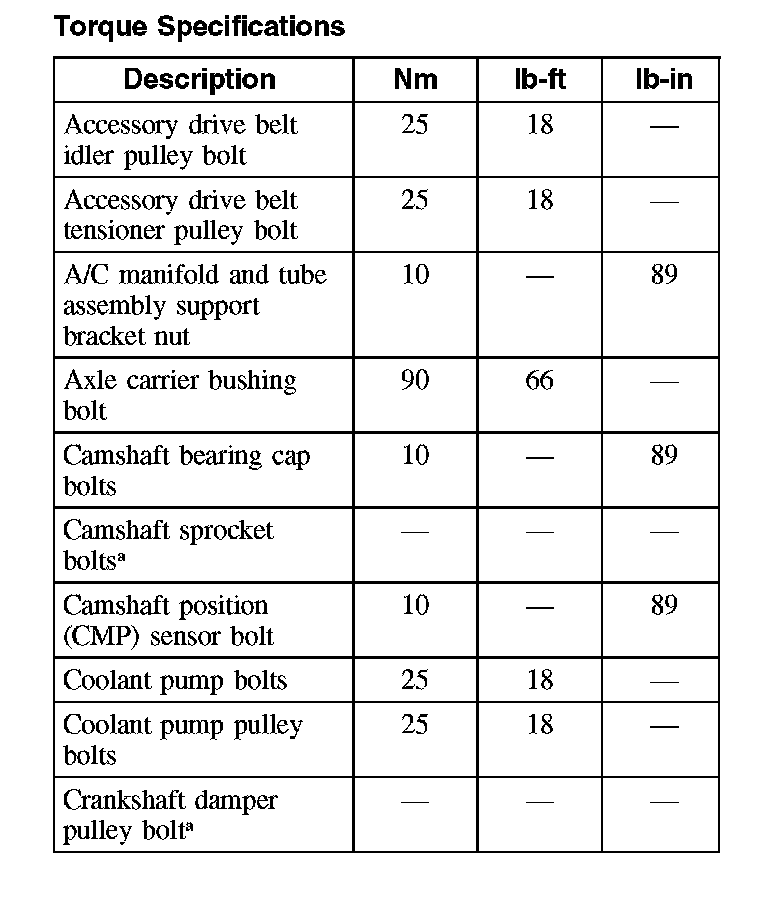

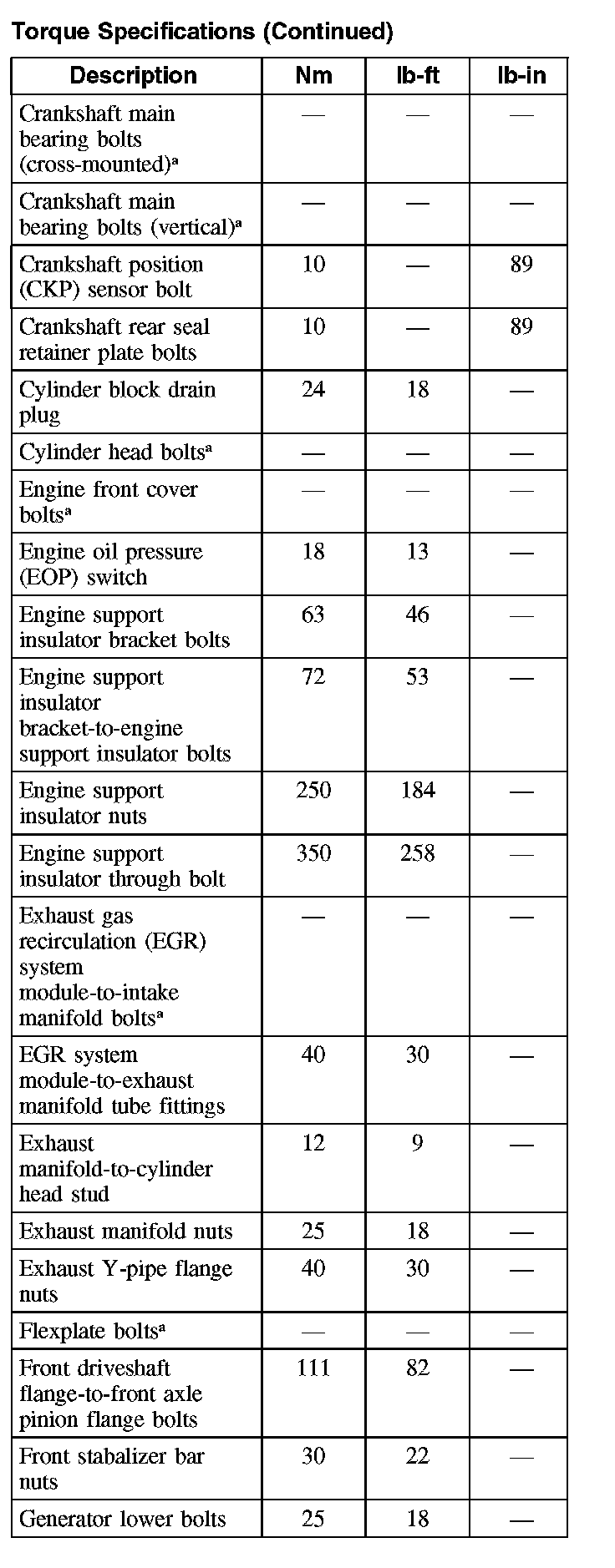

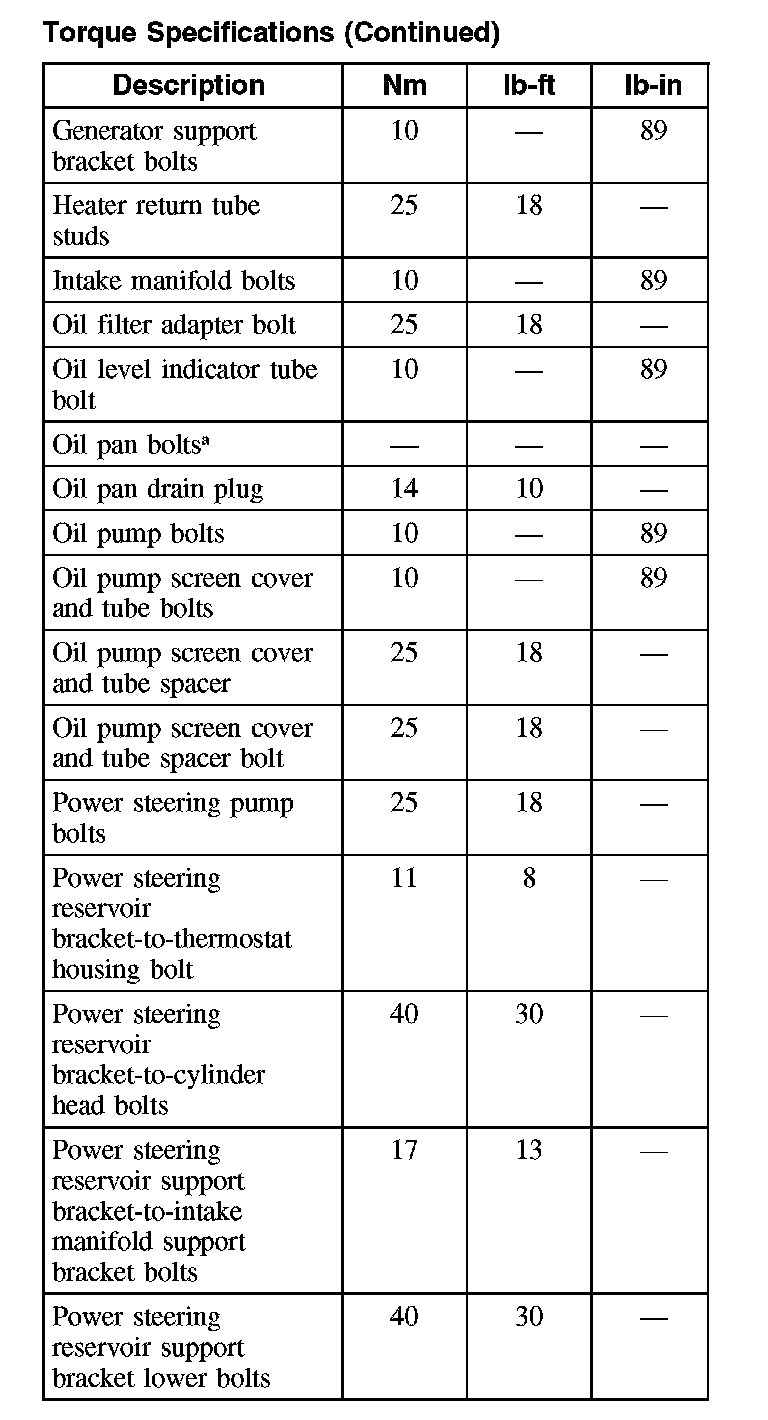

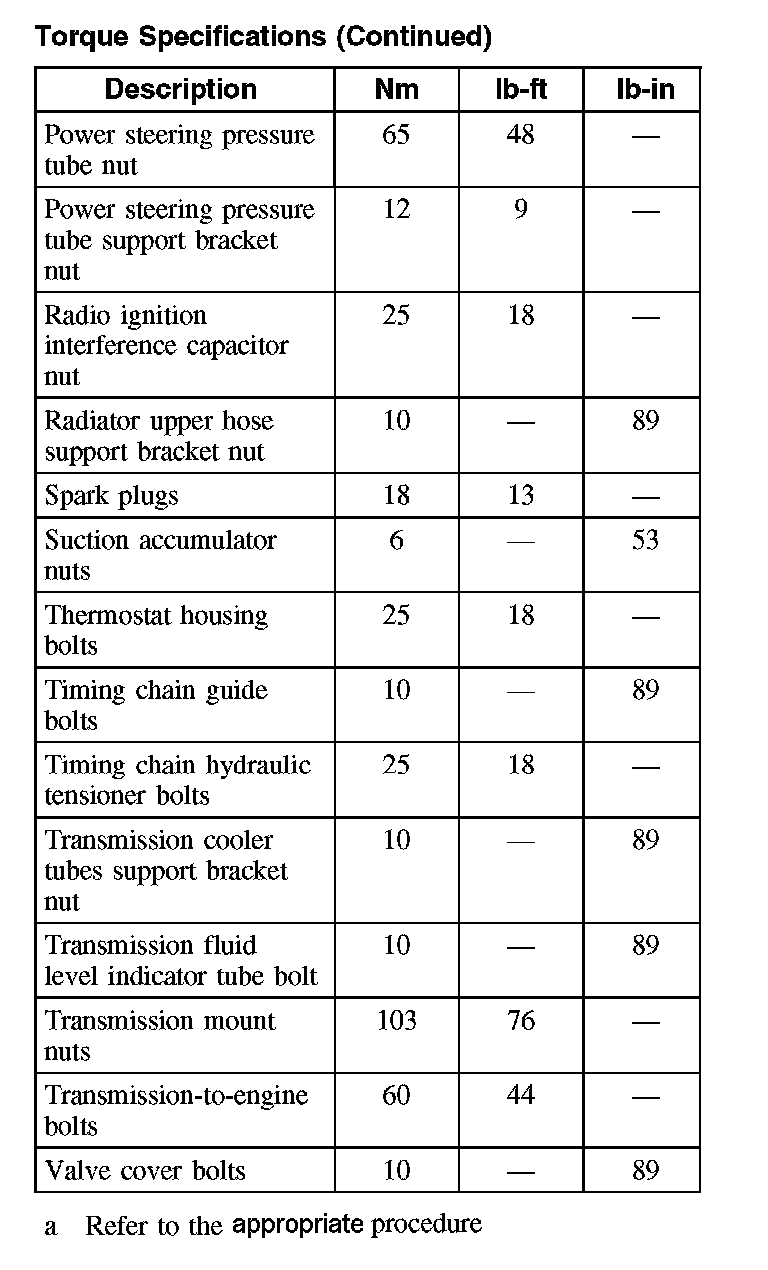

Torque Specifications

Torque Specifications

Torque Specifications:




Torque Specifications:




Torque Specifications:




Torque Specifications:





Connecting rod caps
Tighten the bolts in 2 stages, in the sequence shown.
Stage 1 43 Nm (32 ft. lbs.)
Stage 2 additional 105 degrees
