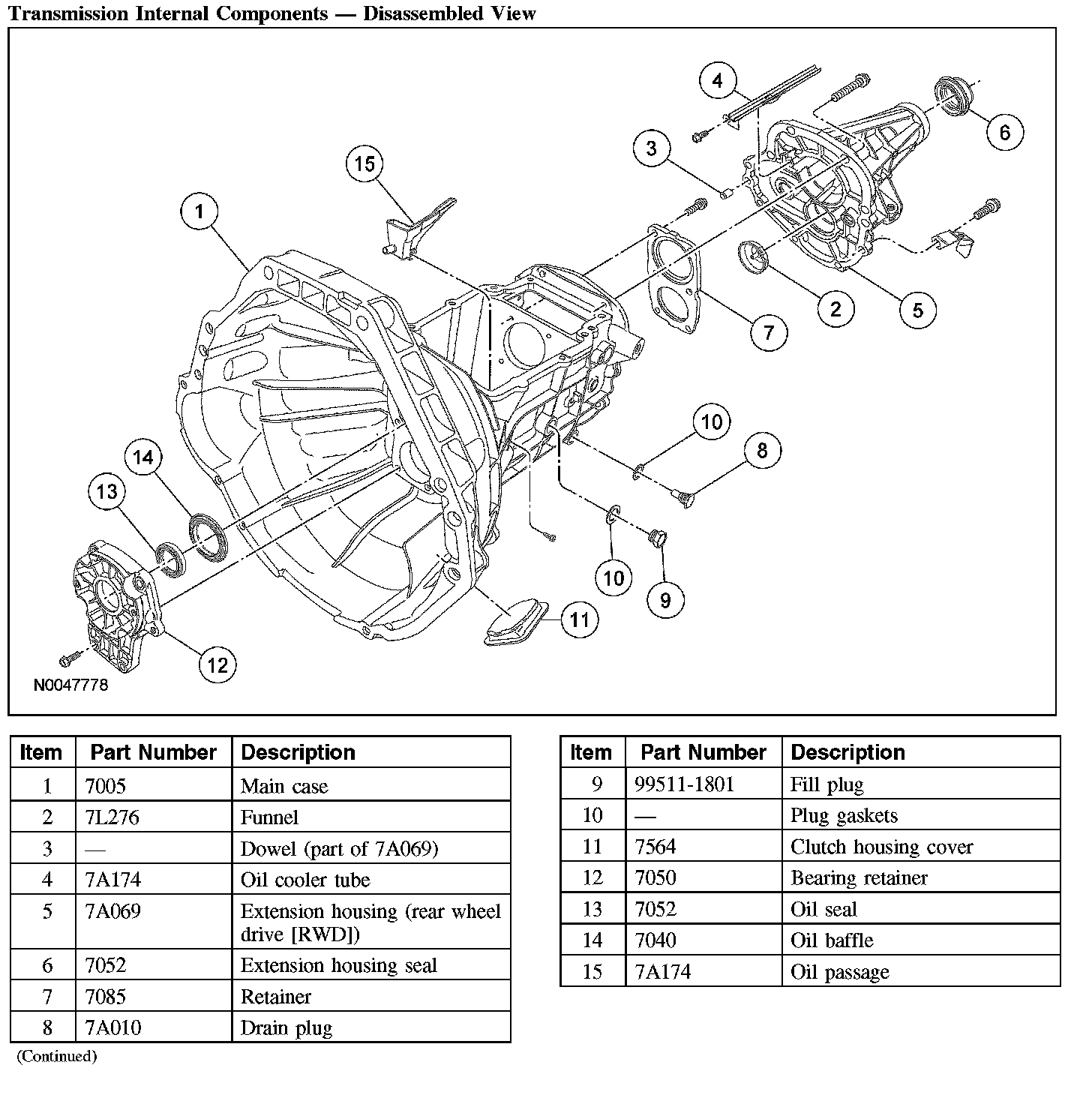

Transmission Internal Components - Disassembled View
Transmission Internal Components - Disassembled View:
