Exhaust System - Exploded View

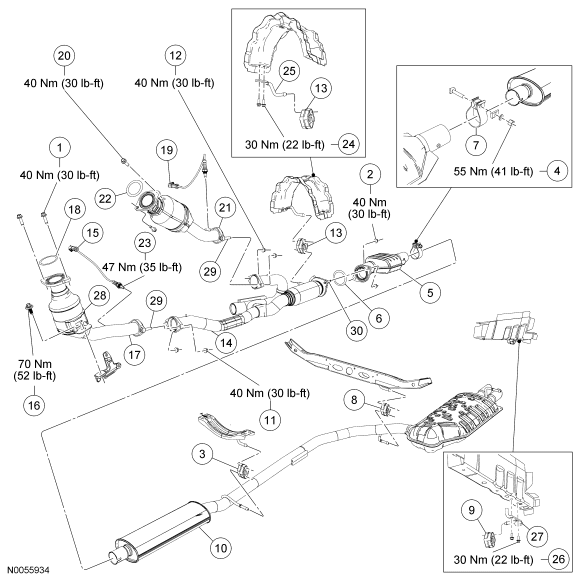

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709982-S900	Front catalytic converter bolts (2 required)
2	W520514-S301	Underbody (UB) catalytic converter nuts (2 required)
3	5F262	Resonator isolator
4	-	Torca® coupling nut (part of 5K214)
5	5E212	UB catalytic converter
6	5F263	UB catalytic converter gasket
7	-	Torca® clamp (part of 5K214)
8	5F262	Muffler front isolator
9	5F262	Muffler rear isolator
10	5K214	Muffler and resonator assembly
11	W520514-S301	Front catalytic converter nuts (2 required)
12	W520514-S301	Rear catalytic converter nuts (2 required)
13	5F262	Y-pipe isolator
14	5G274	Y-pipe assembly
15	-	Electrical connector (part of 9G444)
16	W712311	Front catalytic converter bracket bolt
17	5E213	Front catalytic converter
18	5E241	Front catalytic converter upper gasket
19	-	Electrical connector (part of 9G444)
20	W709982-S900	Rear catalytic converter bolts (2 required)
21	5E211	Rear catalytic converter
22	5E241	Rear catalytic converter upper gasket
23	9G444	Catalyst monitor sensor (2 required)
24	W505263-S301	Y-pipe isolator bracket bolts (2 required)
25	5G268	Y-pipe isolator bracket
26	W505263-S301	Muffler rear isolator bracket bolts (2 required)
27	5A205	Muffler rear isolator bracket
28	5F293	Bracket
29	W710382-S900	Front converter studs
30	W710996-S439	Y-pipe outlet stud
