Electronic Brake Control Module: Service and Repair

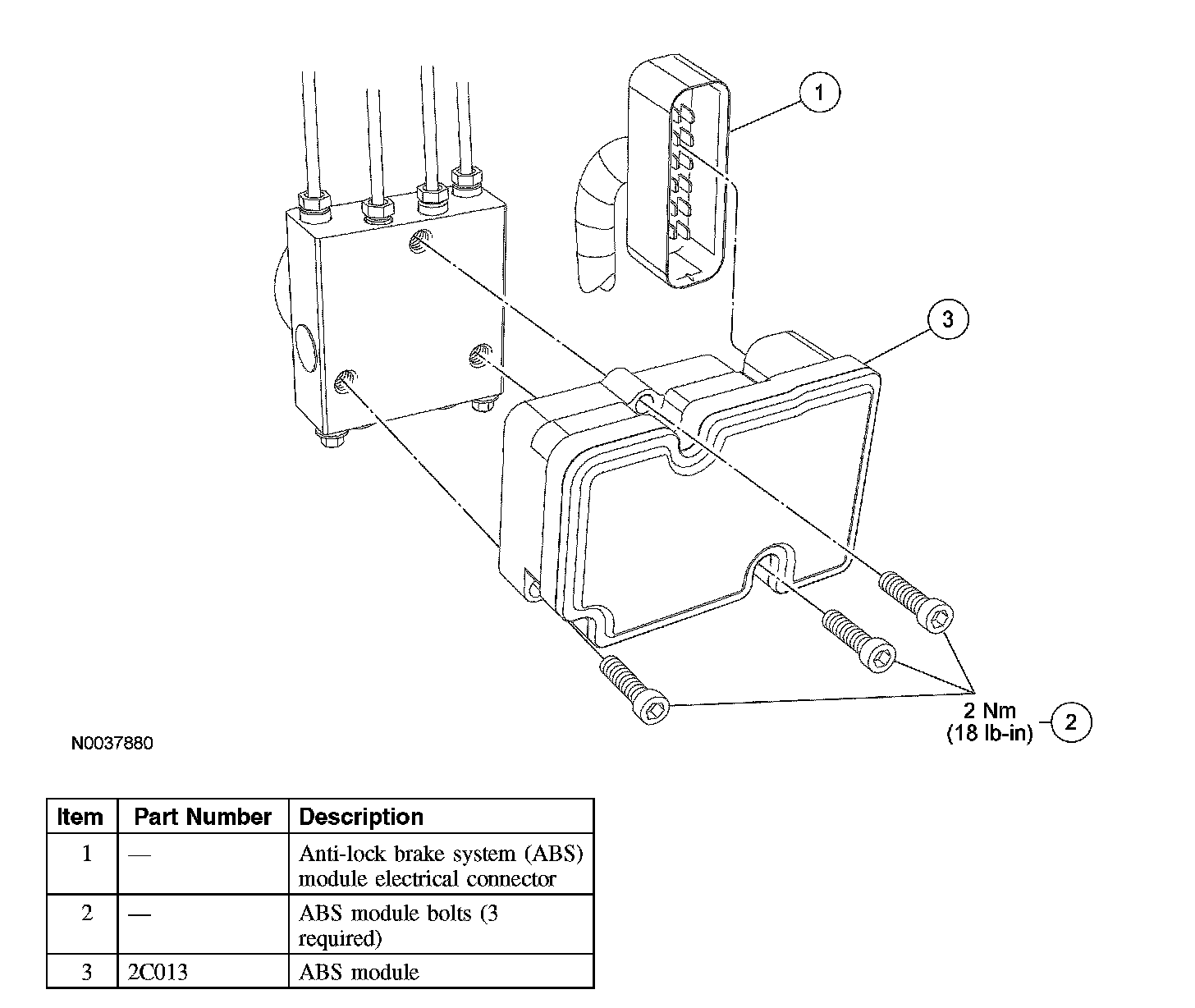

Anti-Lock Brake System (ABS) Module

Removal and Installation





1. Remove the hydraulic control unit (HCU).
2. Remove the 3 anti-lock brake system (ABS) module-to-HCU bolts and the ABS module.
^ To install, tighten to 2 Nm (18 inch lbs.).
3. To install, reverse the removal procedure.
