PINPOINT TEST DV: Throttle Body Assembly Electronic Throttle Control (ETC): Introduction

WARNING: Substantial opening and closing torque is applied by this system. To prevent injury, be careful to keep fingers away from throttle mechanism when actuated. Failure to follow these instructions may result in personal injury.

This pinpoint test is intended to diagnose the following:

electronic throttle body (ETB) (9F991)
harness circuits: ETCRTN, ETCREF, TP1, TP2, TACM+, and TACM-
powertrain control module (PCM) (12A650)

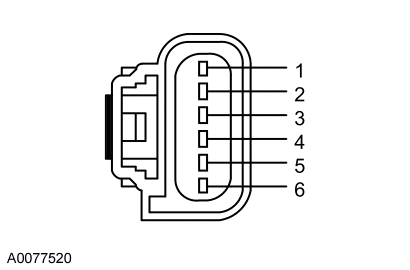

Fig 1: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - A

Courtesy of FORD MOTOR CO.

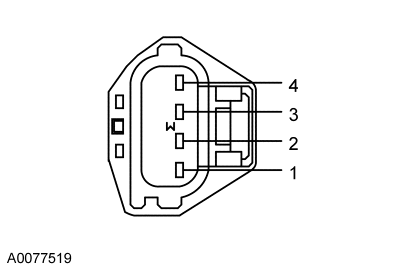

Fig 2: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - B

Courtesy of FORD MOTOR CO.

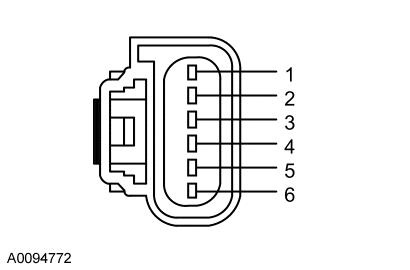

Fig 3: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector - C

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, Edge, F-150 4.2L, F-150 4.6L, MKX, MKZ	A	4 1 2 3	TP2 TP1 ETCRTN ETCREF
Five Hundred, Freestyle, Fusion 3.0L, Milan 3.0L, Montego	B	6 3 4 5	TP2 TP1 ETCRTN ETCREF
Fusion 2.3L, Milan 2.3L	B	4 6 3 5	TP2 TP1 ETCRTN ETCREF
All other vehicles	C	1 4 3 2	TP2 TP1 ETCRTN ETCREF

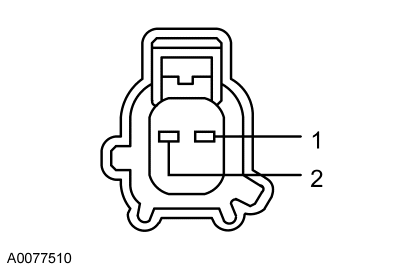

Fig 4: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector - A

Courtesy of FORD MOTOR CO.

Fig 5: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector - B

Courtesy of FORD MOTOR CO.

Fig 6: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector - C

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, Edge, F-150 4.2L, F-150 4.6L, MKX, MKZ	A	6 5	TACM- TACM+
Five Hundred, Freestyle, Fusion 2.3L, Milan 2.3L, Montego	B	2 1	TACM- TACM+
Fusion 3.0L, Milan 3.0L	B	1 2	TACM- TACM+
All other vehicles	C	2 1	TACM- TACM+

Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to the REFERENCE VALUES article.

Vehicle	Connector	Pin	Circuit
E-Series, F-Super Duty	170 Pin	B16, B4, E66 B18, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
Edge, MKX	190 Pin	B21, B28, E66 B59, B65, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
Expedition, Navigator	140 Pin	B21, B28, E66 B59, B65, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
Explorer, Explorer Sport Trac, Mountaineer	170 Pin	B24, B4, E66 B43, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
F-150, Mark LT	190 Pin	B21, B28, E66 B58, B59, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
Five Hundred, Freestyle, Montego	150 (50-50-50) Pin	B24, B4, E18 B41, B6, E7 B35 B47 E48 E47 E29 E19	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
Fusion, Milan, MKZ	140 Pin	B21, B28, E66 B59, B60, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
All other vehicles	170 Pin	B24, B4, E66 B41, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TP2 TP1
