Master window adjust switch (14529A), without rear power windows: Schematic

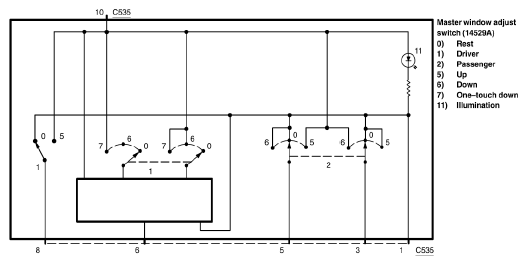

Fig 1: Master Window Adjust Switch (14529A), Without Rear Power Windows - Schematic
G05180400Courtesy of FORD MOTOR CO.
