Wiper/washer switch (17A553): Schematic

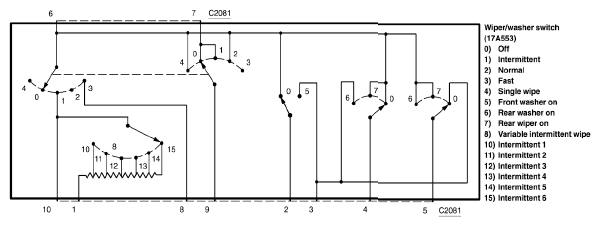

Fig 1: Wiper/Washer Switch (17A553) - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
