Removal And Installation

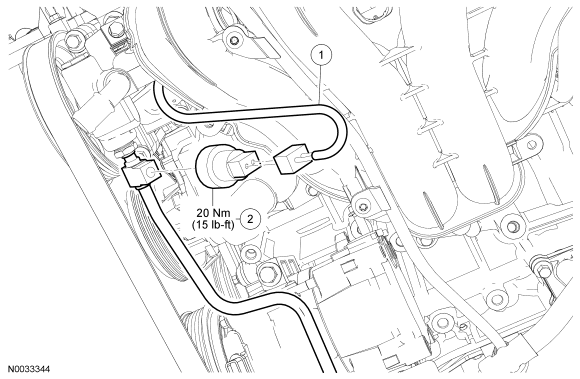

Fig 1: Power Steering Pressure (PSP) Switch With Torque Specifications
GF0039457Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Power steering pressure (PSP) sensor electrical connector
2 3A719 PSP sensor
  1. Disconnect the power steering pressure (PSP) switch electrical connector.
  2. Remove the PSP switch.
    • To install, tighten to 20 Nm (15 lb-ft).
  3. To install, reverse the removal procedure.
