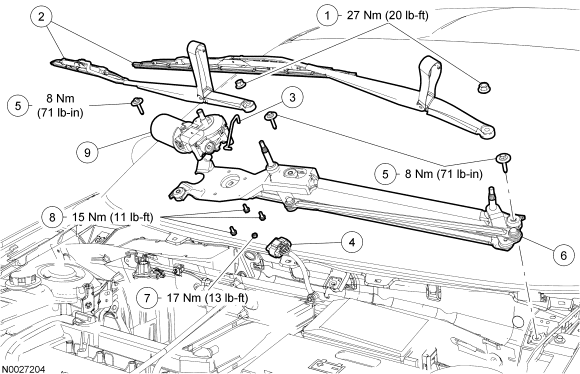

Wiper and Washer System - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiper pivot arm nuts (2 required) |
| 2 | - | Wiper pivot arm (2 required) |
| 3 | 19K266 | Cowl panel support brace |
| 4 | - | Electrical connector (part of 14K733) |
| 5 | W710317 | Wiper mounting arm and pivot shaft bolts (3 required) |
| 6 | 17504 | Wiper mounting arm and pivot shaft assembly |
| 7 | - | Wiper motor shaft nut |
| 8 | - | Wiper motor bolts (3 required) |
| 9 | 17508 | Wiper motor |
- For additional information, refer to the appropriate procedures.
