Generator Connectors

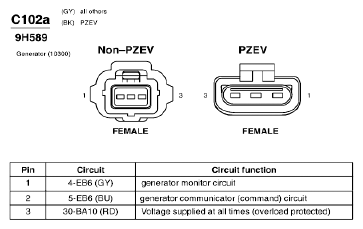

Fig 1: Generator Connector End View (C102a)
G07850341Courtesy of FORD MOTOR CO.

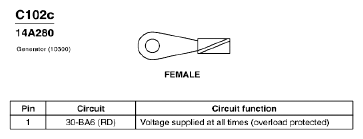

Fig 2: Generator Connector End View (C102c)
G07850342Courtesy of FORD MOTOR CO.
