Generic Electronic Module (GEM) Connector

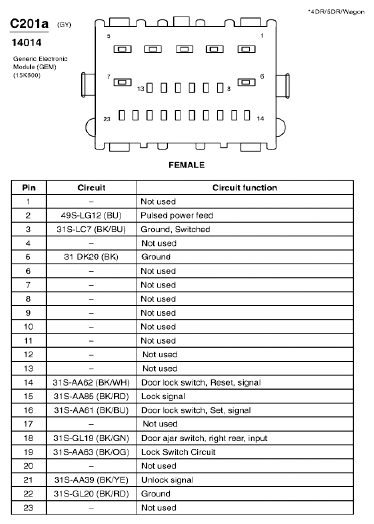

Fig 1: Generic Electronic Module (GEM) Connector End View (C201a)
G07850378Courtesy of FORD MOTOR CO.

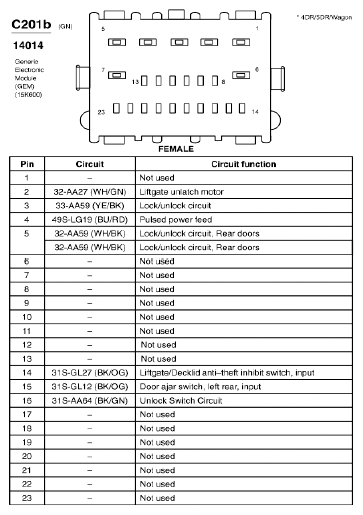

Fig 2: Generic Electronic Module (GEM) Connector End View (C201b)
G07850379Courtesy of FORD MOTOR CO.

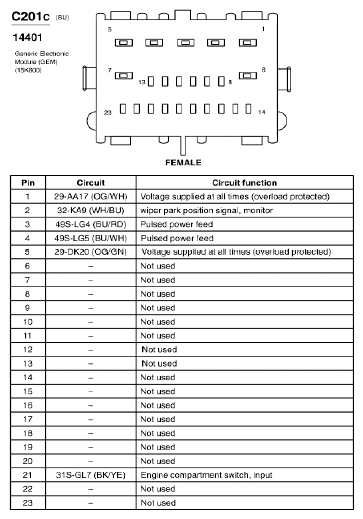

Fig 3: Generic Electronic Module (GEM) Connector End View (C201c)
G07850380Courtesy of FORD MOTOR CO.

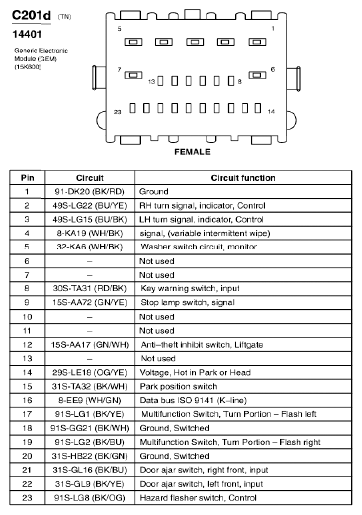

Fig 4: Generic Electronic Module (GEM) Connector End View (C201d)
G07850381Courtesy of FORD MOTOR CO.

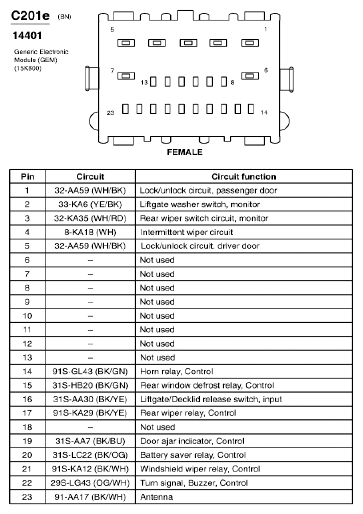

Fig 5: Generic Electronic Module (GEM) Connector End View (C201e)
G07850382Courtesy of FORD MOTOR CO.
