Master Window Adjust Switch Connector

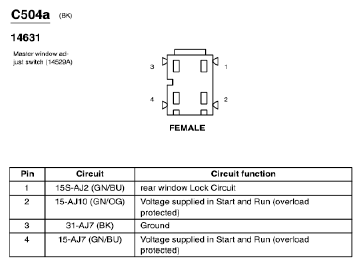

Fig 1: Master Window Adjust Switch Connector End View (C504a)
Courtesy of FORD MOTOR CO.

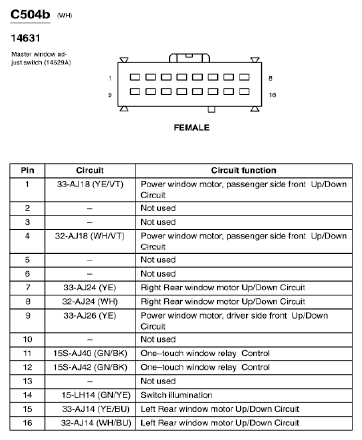

Fig 2: Master Window Adjust Switch Connector End View (C504b)
Courtesy of FORD MOTOR CO.

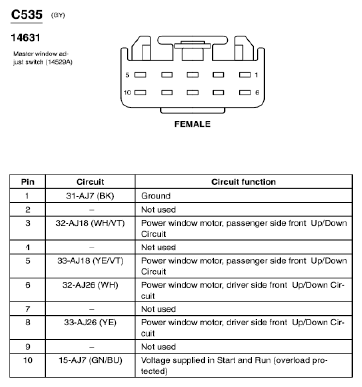

Fig 3: Master Window Adjust Switch Connector End View (C535)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
