Multifunction Switch Connectors

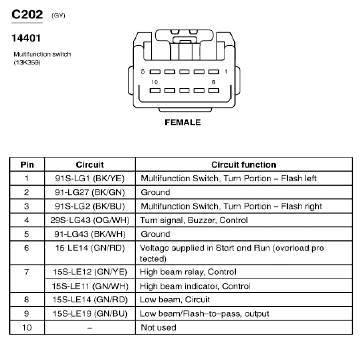

Fig 1: Multifunction Switch Connector End View (C202)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
