Power Window Motor, Driver Side Front Connector

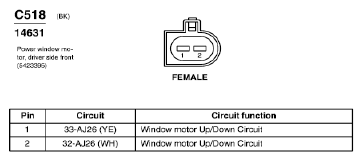

Fig 1: Power Window Motor, Driver Side Front Connector End View (C518)
G07850451Courtesy of FORD MOTOR CO.
