Radio Remote Control Switch Connector

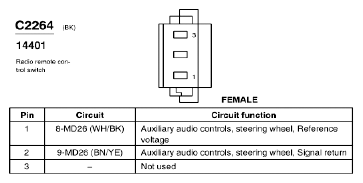

Fig 1: Radio Remote Control Switch Connector End View (C2264)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
