Traction Control System (TCS) Disable Switch Connector

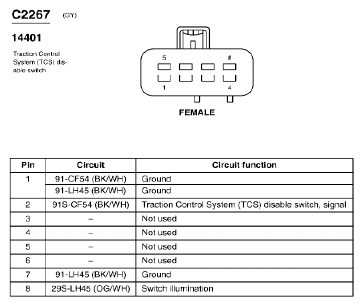

Fig 1: Traction Control System (TCS) Disable Switch Connector End View (C2267)
G07850547Courtesy of FORD MOTOR CO.
