Instrument Panel: Notes

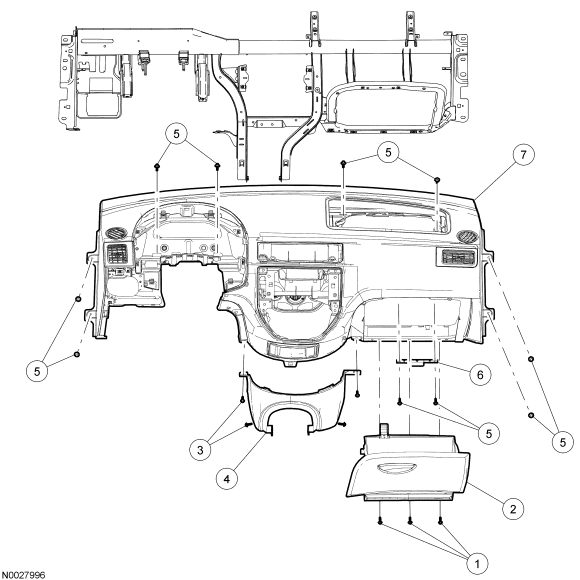

Fig 1: Identifying Instrument Panel Components
GF0038816Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Glove compartment screws (3 required)
2 - Glove compartment
3 W505022 Console center finish panel (4 required)
4 - Console center finish panel (part of 045A36)
5 W704160 Instrument panel screws (10 required)
6 - Glove compartment striker plate
7 043C18 Instrument panel
