Positive Crankcase Ventilation (PCV) System Components - Exploded View

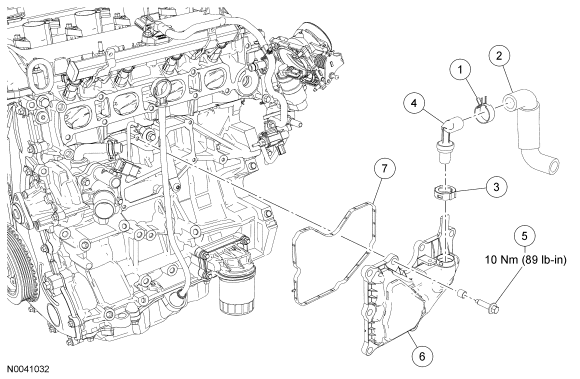

Fig 1: Exploded View Of Positive Crankcase Ventilation PCV System Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Positive crankcase ventilation (PCV) tube clamp |
| 2 | 6758 | PCV valve tube |
| 3 | 6A892 | PCV valve cap |
| 4 | 6A666 | PCV valve |
| 5 | W500214 | Crankcase vent oil separator mounting bolt (8 required) |
| 6 | 6A785 | Crankcase vent oil separator |
| 7 | 6B752 | Crankcase vent oil separator gasket |
- For additional information, refer to the appropriate procedure.
