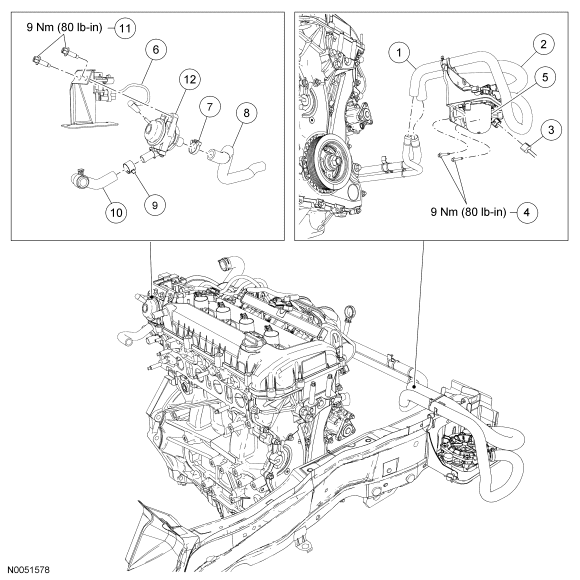

Secondary Air Injection System (AIR) Components - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 9S477 | Secondary air injection (AIR) pump outlet hose |
| 2 | 9B458 | AIR pump inlet hose |
| 3 | 14A464 | AIR pump electrical connector |
| 4 | W500215 | AIR pump mounting bolt (2 required) |
| 5 | 9A486 | AIR pump |
| 6 | 9E499 | AIR valve vacuum connector |
| 7 | 9H477 | AIR valve inlet hose clamp |
| 8 | 9B459 | AIR valve inlet hose |
| 9 | W525857 | AIR valve outlet hose clamp |
| 10 | 9B466 | AIR valve outlet hose |
| 11 | W500204 | AIR valve mounting bolts (2 required) |
| 12 | 9F491 | AIR valve |
- For additional information, refer to the appropriate procedure.
