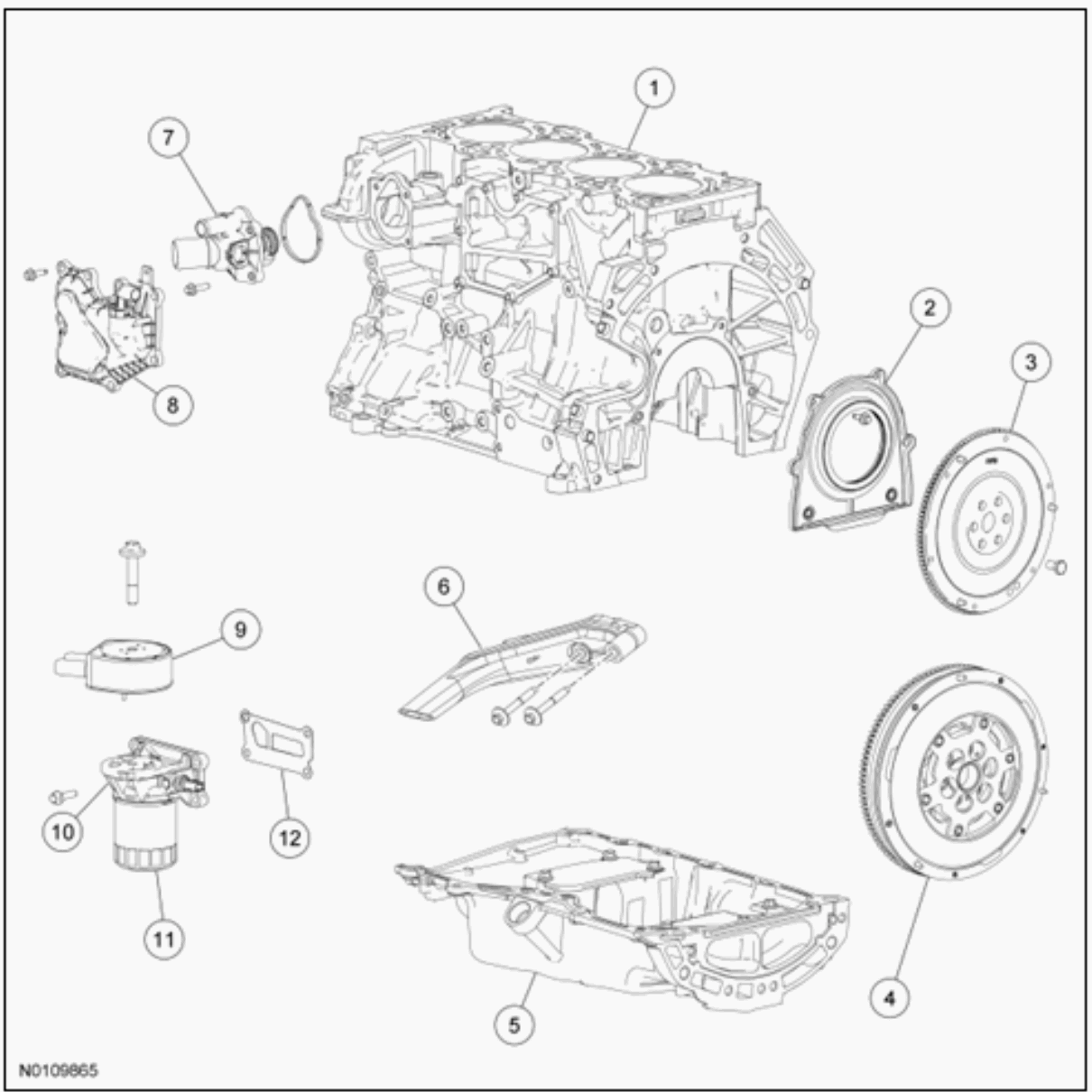

Lower Engine Block (View 1)
CALL OUTS FOR LOWER BLOCK COMPONENTS (VIEW 1)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6010 | Cylinder block |
| 2 | 6K318 | Crankshaft rear oil seal and retainer |
| 3 | 6K375 | Flexplate |
| 4 | 6K390 | Flywheel |
| 5 | 6675 | Oil pan |
| 6 | 6622 | Oil pump screen and pickup tube |
| 7 | 8575 | Thermostat assembly |
| 8 | 6A785 | Crankcase vent oil separator |
| 9 | 6A642 | Oil cooler (if equipped) |
| 10 | 6884 | Oil filter adapter |
| 11 | 6714 | Oil filter |
| 12 | 6A636 | Oil filter adapter gasket |
